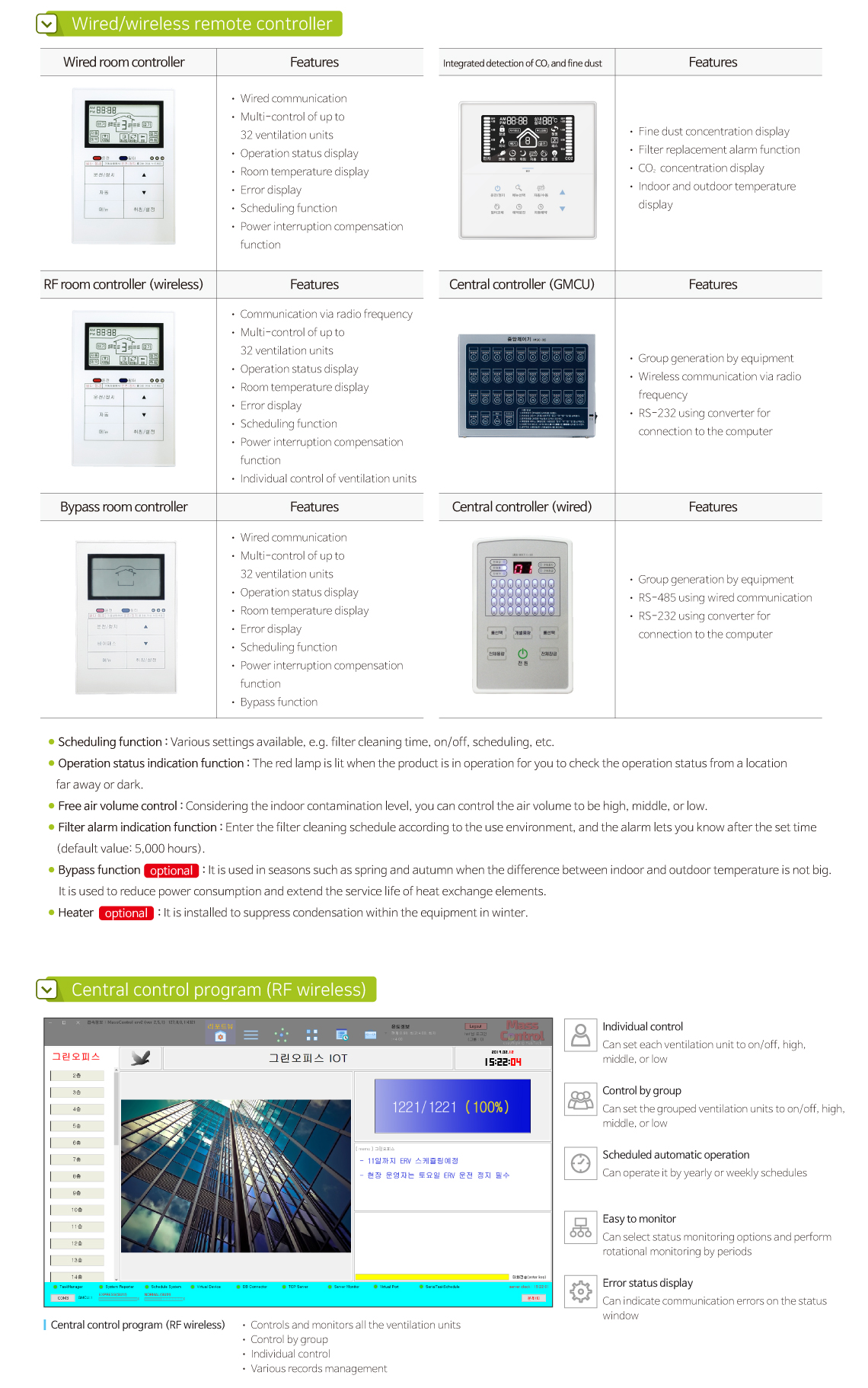

Control System

Central control (RS-485)

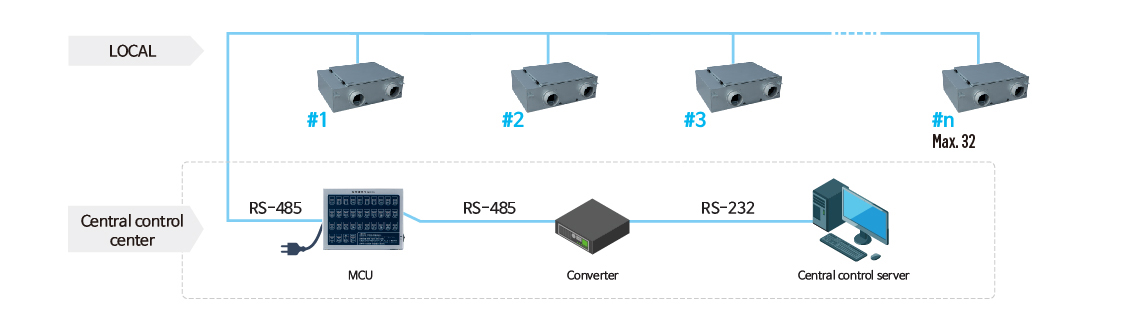

Wired central control

※You can connect up to 32 ventilation units to an MCU.
※You can connect up to 32 ventilation units to the central control server.

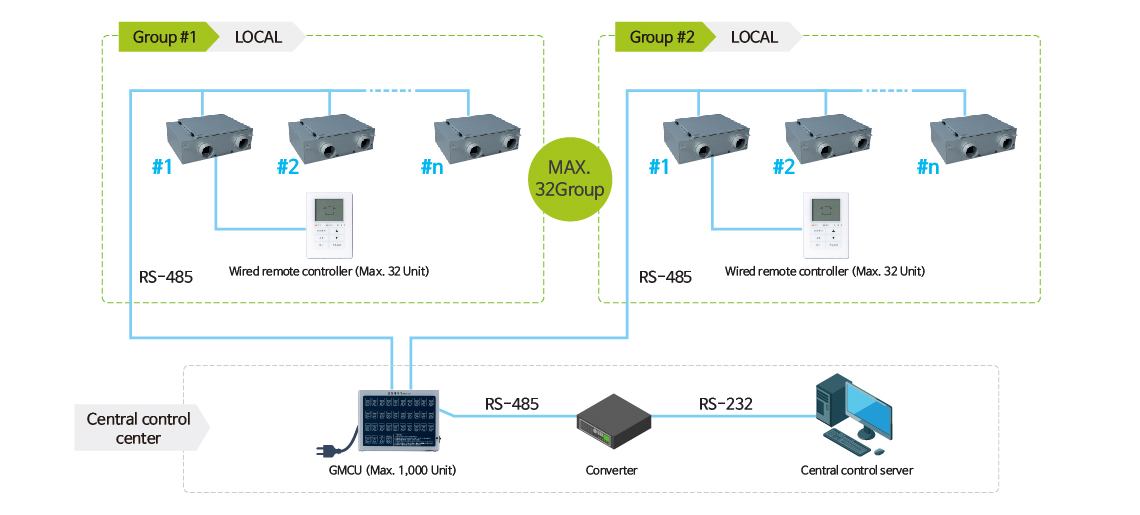

Wired group control

※You can connect up to 32 ventilation units to a wired remote controller.
※You can connect up to 32 ventilation unit groups to a GMCU.
※You can connect up to 32 GMCUs to the central control server.

Central control (RF wireless communication)

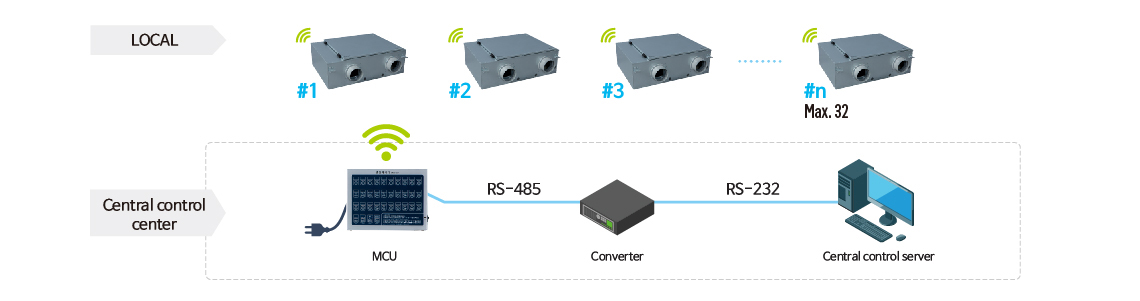

Wireless central control

※You can connect up to 32 RF remote controllers.

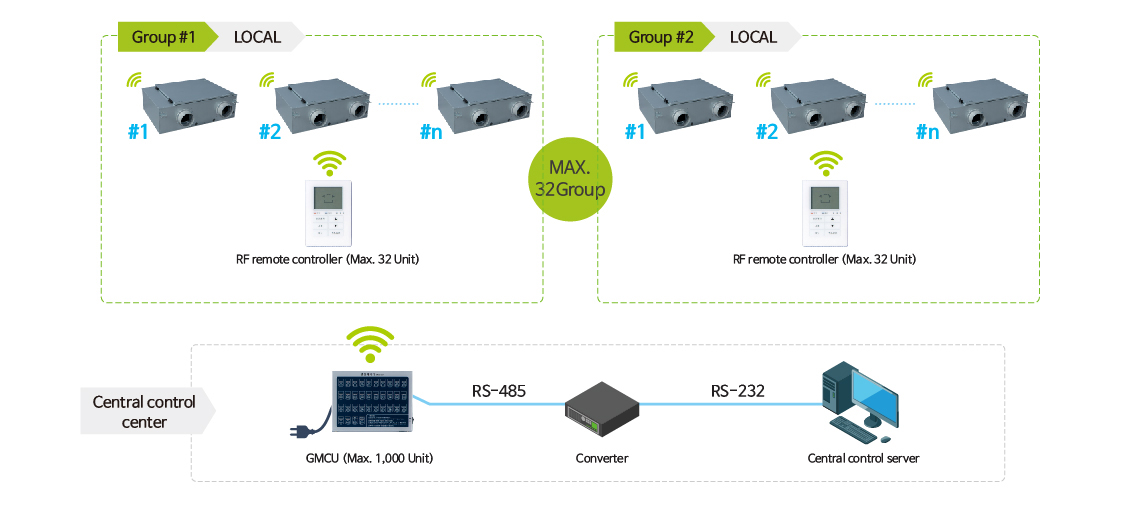

Wireless group control

※You can connect up to 32 ventilation units to an RF remote controller for each group.
※You can connect up to 32 wireless ventilation unit groups to a GMCU.
※You can connect up to 32 GMCUs to the central control server.

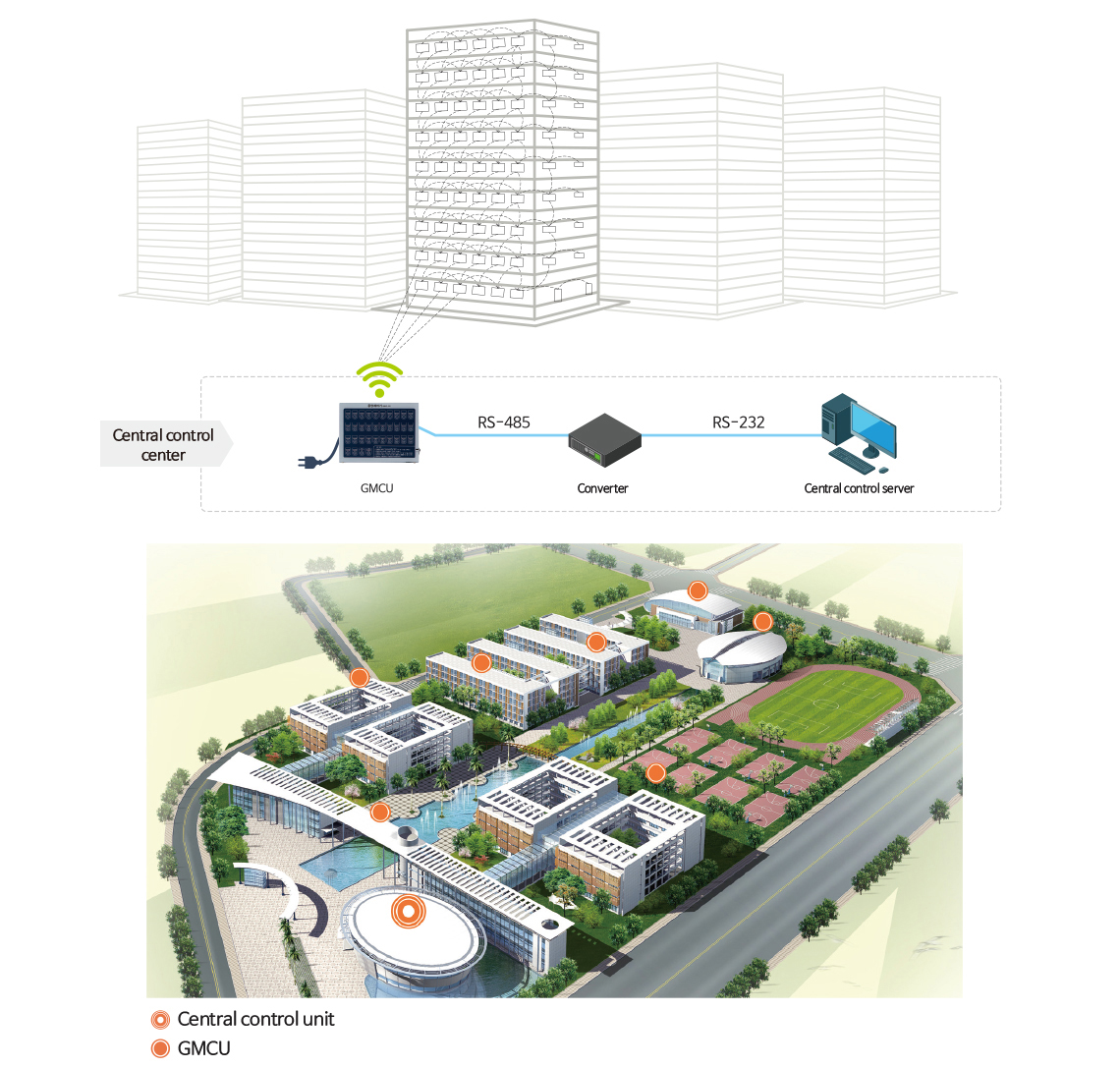

RF communication central control configuration

Installation subsidiary Materials

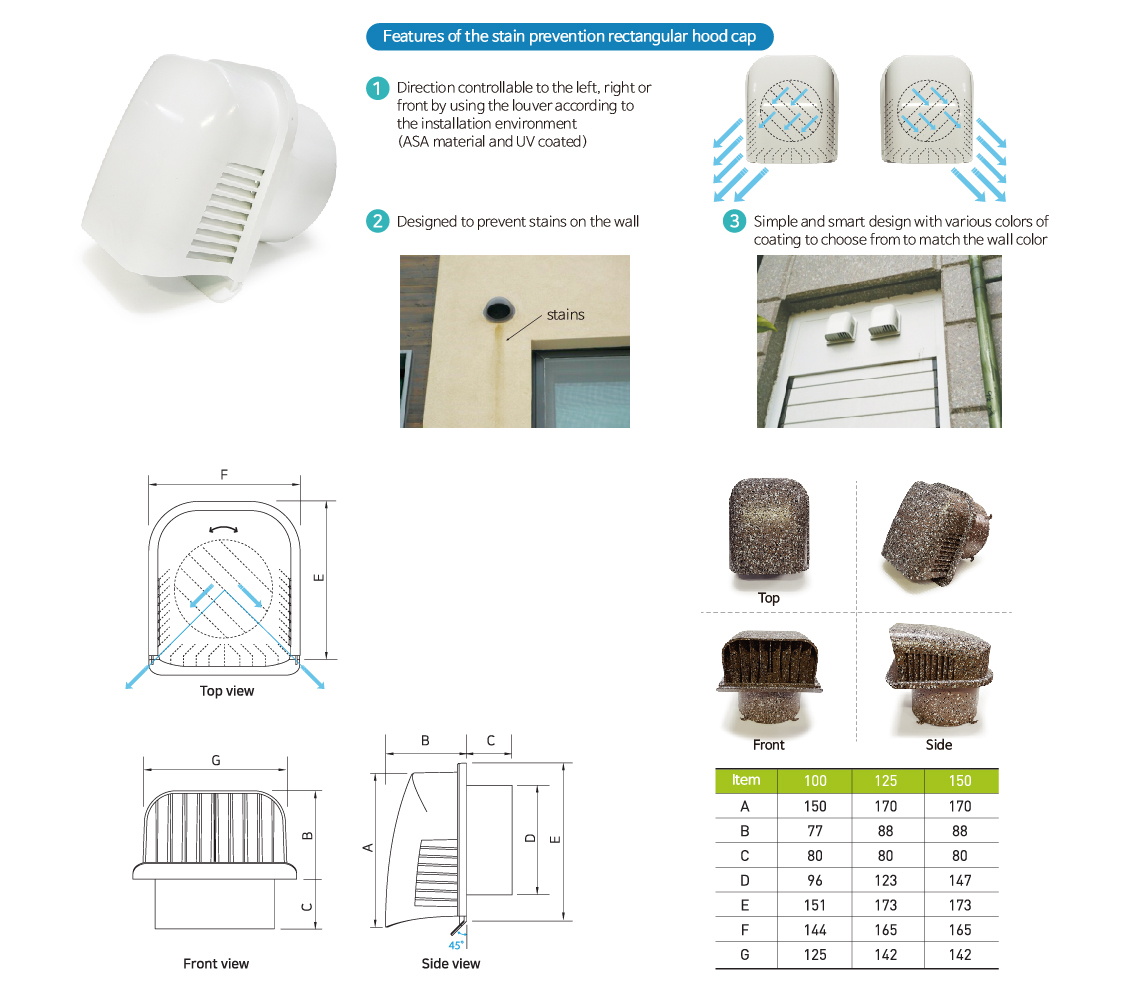

1. External Ventilation Cap

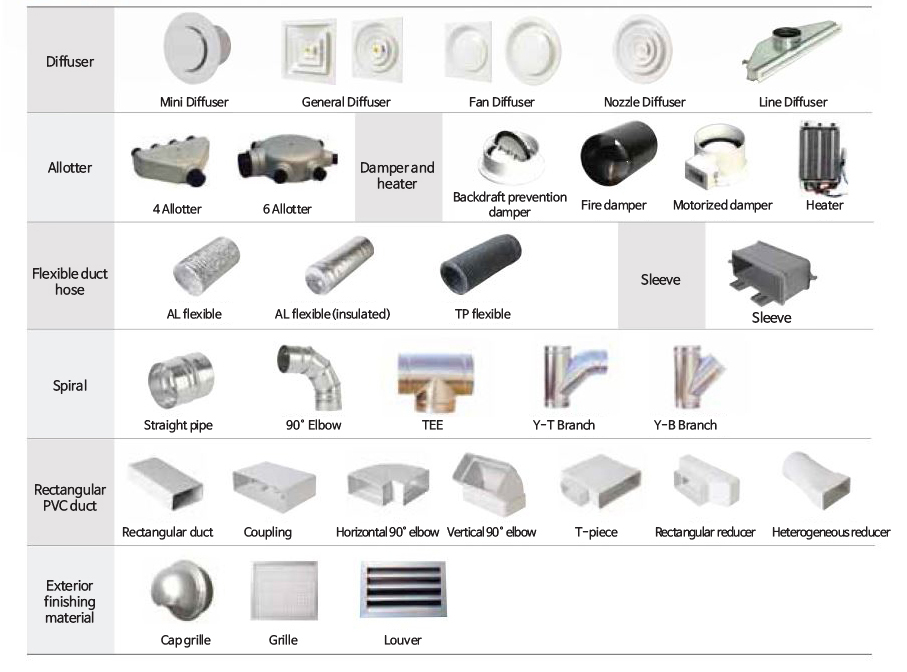

2. Installation subsidiary Materials
