HOMEERVFilter Box

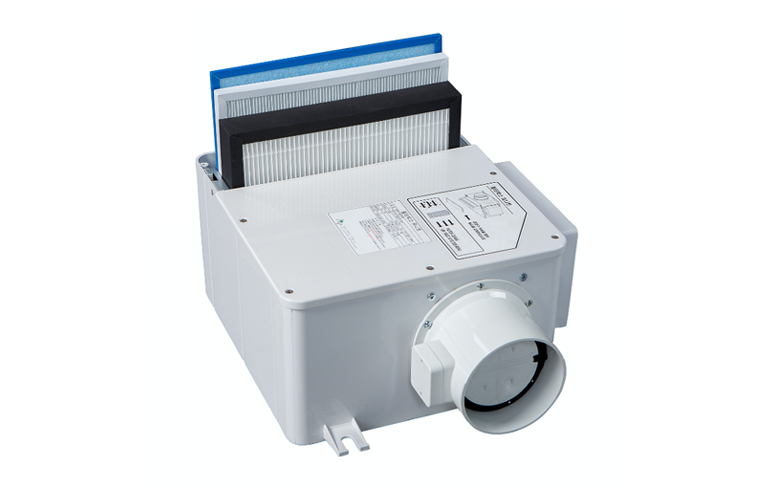

Filter Box

Filter Box

Install the filter box on the already installed mechanical ventilation unit to remove ultra-fine dust

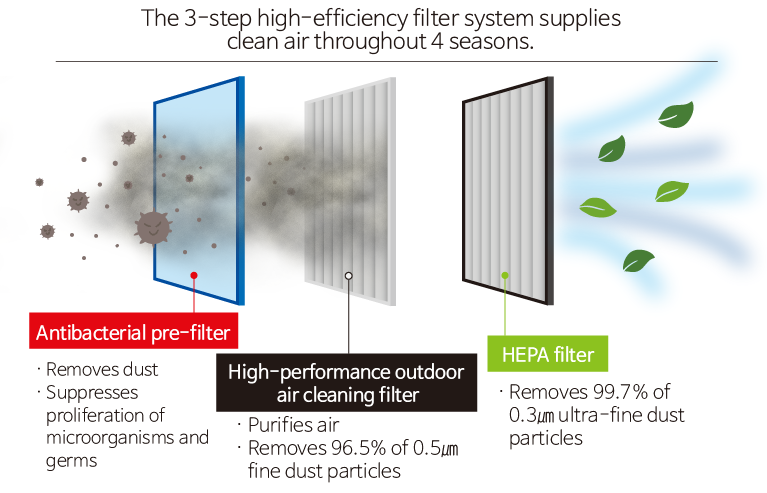

  • High-efficiency filter system applied
  • Filter boxes of various capacities available

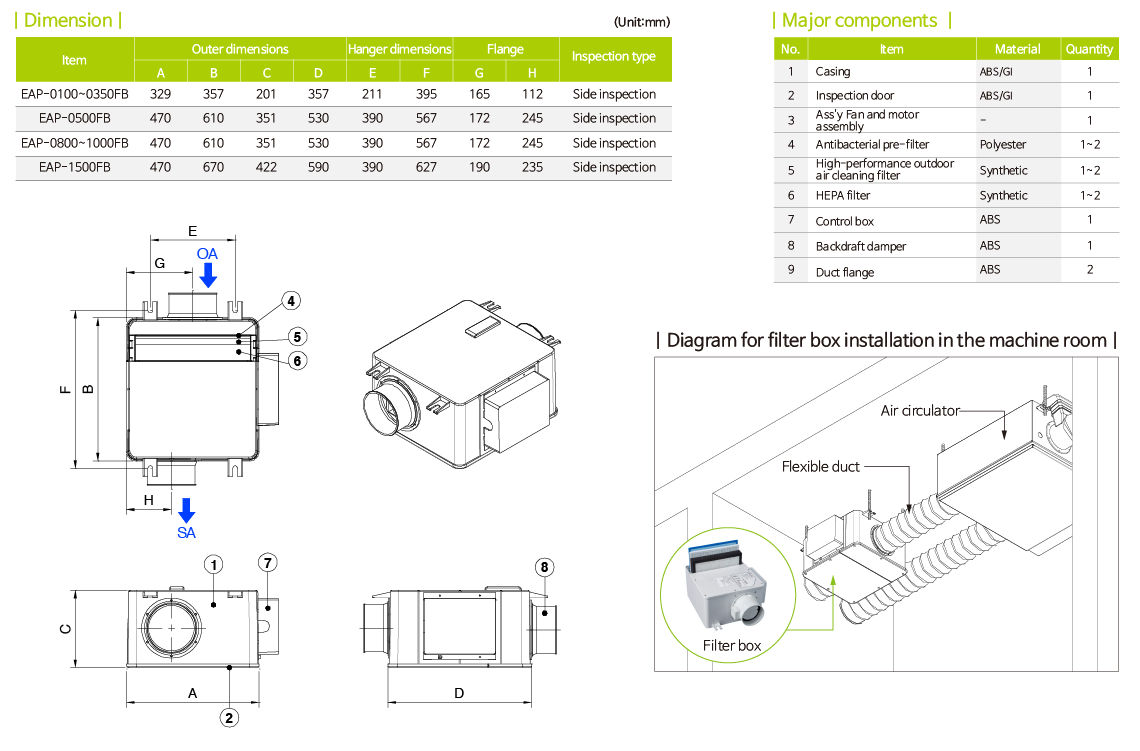

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure(mmAq) Duct diameter(Ø)
EAP-0100~0350FB 100~350 38~61 25 125
EAP-0500FB 500 68 25 200
EAP-0800~1000FB 800~1,000 145~180 25 250
EAP-1500FB 1,500 320 25 300
Notes
  • Power: single phase/220V/60Hz
  • Motor: BLDC
  • Casing: ABS(0100~0350 Model)/ CR+powder coating(0500~1500 Model)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter/high-performance outdoor air cleaning filter (medium)/HEPA filter
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
