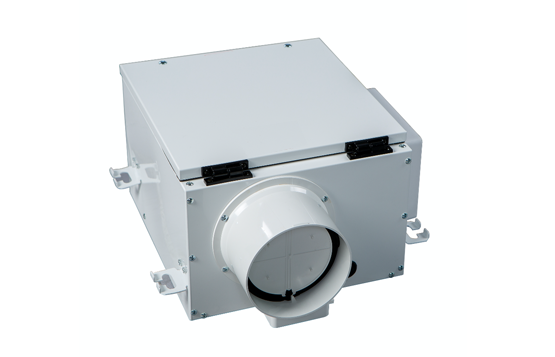

HOMEERVAir Supply/Exhaust Unit

Air Supply/Exhaust Unit

Air Supply/Exhaust Unit

Applied to basement elevator halls, small studio flats and apartments

  • Cleans the indoor air by supplying and exhausting air.

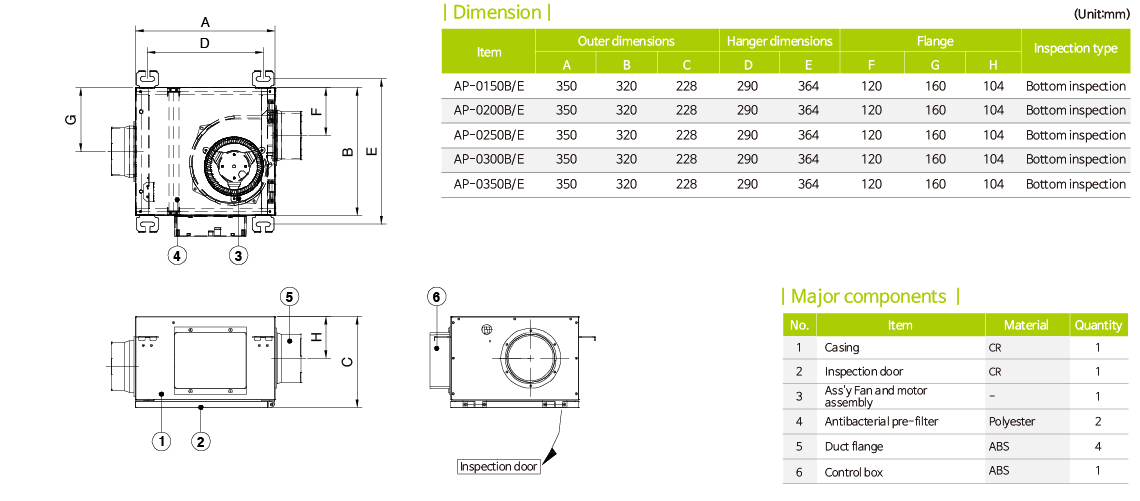

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter
high middle low high middle low mmAq dB Ø
AP-0150B/E 180 150 105 30 27 24 20 40 or less 125
AP-0200B/E 240 200 145 43 30 26 20 40 or less 125
AP-0250B/E 300 250 180 53 44 30 20 40 or less 125
AP-0300B/E 350 300 210 63 53 37 20 40 or less 125
AP-0350B/E 400 350 240 70 63 39 20 40 or less 125
Notes
  • Power: single phase/220V/60Hz
  • Motor: BLDC
  • Casing: CR
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter
  • Warranty period: 2 years

  • Optional: high-performance outdoor air cleaning filter (medium), Metal filter for air purification
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
