Standard Type

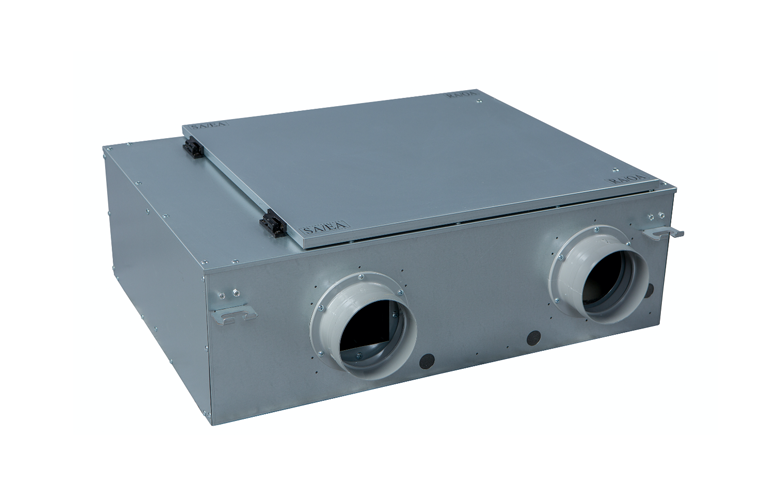

Standard Type (LS type)

School, government office, hospital, office building, convenient facility etc.

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

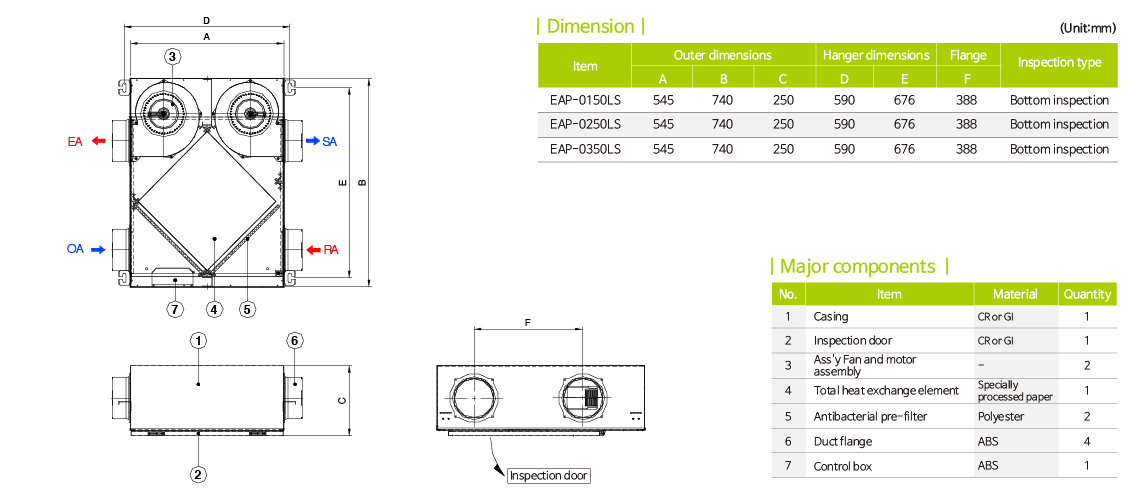

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter Temperature exchange efficiency(%) Total heat exchange efficiency(%) Energy coefficient
high middle low high middle low mmAq dB Ø Cooling Heating Cooling Heating Cooling Heating
EAP-0150LS 150 135 90 46 42 21 10 40 or less 125/150 77 82 67 76 16 22
EAP-0250LS 250 227 150 102 93 47 10 40 or less 150 70 76 57 73 9.8 15.7
EAP-0350LS 350 318 210 150 137 69 10 40 or less 150 66 75 53 71 9.4 15.6
Notes
  • Power: single phase/220V/60Hz
  • Heat exchanger: plate type (specially processed paper)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter

  • Optional: high-performance outdoor air cleaning filter (medium)/HEPA filter
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater
  • Motor: BLDC
  • Casing: CR or GI
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
