HOMEERVStandard Type

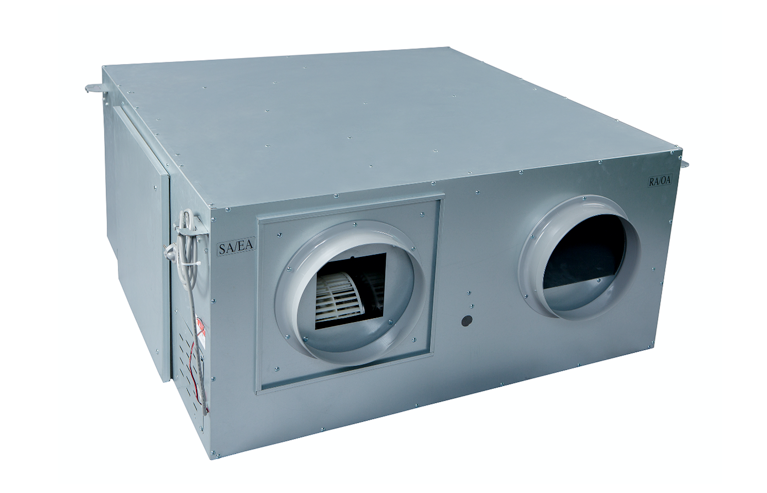

Standard Type

Standard Large-capacity Type (SS/SSH type)

School, government office, hospital, office building, convenient facility etc.

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

Drawings

Standard Specifications

Model Air Volume Power Consumption Duct Diameter External Static Pressure Noise Total Heat Exchange Efficiency(%) Energy Coefficient
High Middle Low W Ø Pa dB Cooling Heating Cooling Heating
EAP-0500SS 500 455 228 210 200 100 or more 45 or less 45 or more 70 or more 8.00 or more 15.00 or more
EAP-0800SS 800 727 364 275 250
EAP-1000SS 1,000 909 425 383 250
EAP-1500SS 1,500 1,363 682 737 300 120 or more
EAP-0500SSH 500 450 230 209 200 100 or more
EAP-0800SSH 800 720 360 299 250
EAP-1000SSH 1,000 900 450 405 250
EAP-1500SSH 1,500 1,350 680 737 300 120 or more
Notes
  • Power: Single phase/220V/60Hz
  • Heat Exchanger: Plate type (specially processed paper)
  • Air volume control: High, Middle, Low (3 levels)/Sleep function/Energy-saving function
  • Filter: Pre-Filter / Medium filter 15mm
  • Motor: BLDC
  • Casing: CR
  • Warranty period: 2 years
  • Optional: HEPA Filter / Activated carbon filter / Motorised damper / Backdraft damper / PTC heater
    Wired remote controller / C02 fine dust detection sensors / Home network integration
