Space completed using the one and only technology

with the sole aim to make the future happier and healthier.

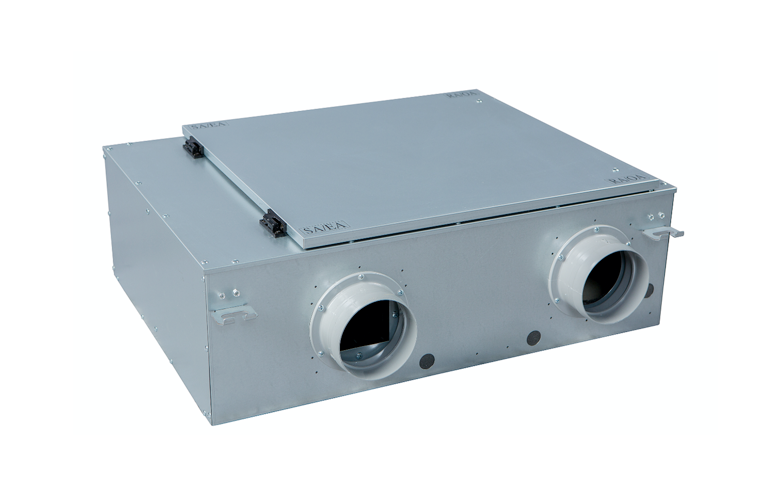

HOMEERVSlim Type

Slim Type

Slim Type (LS type)

Residential Use

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

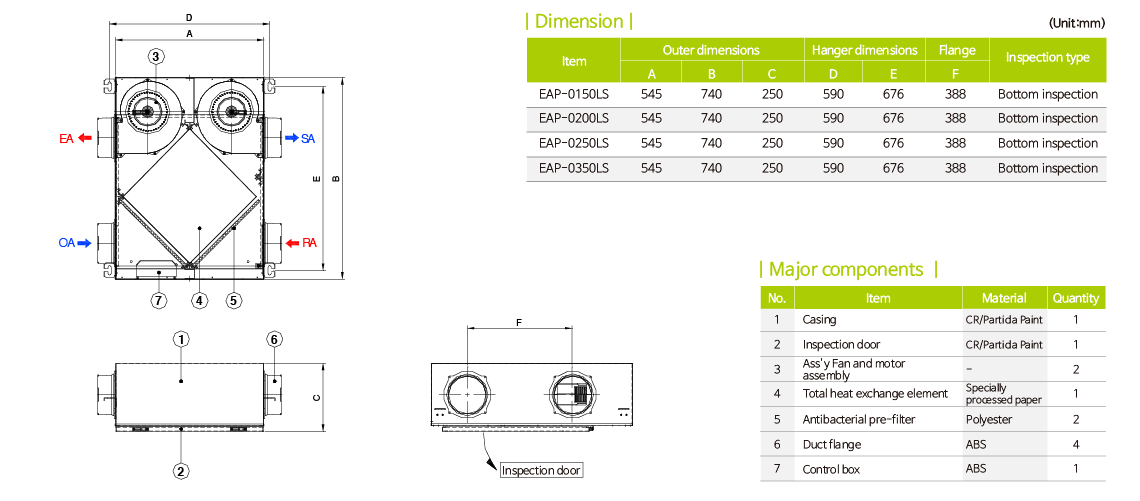

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter Temperature exchange efficiency(%) Total heat exchange efficiency(%) Energy coefficient
high middle low high middle low mmAq dB Ø Cooling Heating Cooling Heating Cooling Heating
EAP-0150LS 165 150 75 64 58 29 10 40 or less 125/150 67 76 47 74 9.12 18.12
AP-0200LS 220 200 100 109 99 50 10 40 or less 125 69 80 50 76 8.01 15.33
EAP-0250LS 275 250 125 113 103 52 10 40 or less 150 68 78 52 79 9.43 18.26
EAP-0350LS 385 350 175 171 155 78 10 40 or less 150 64 75 48 72 8.11 15.35
Notes
  • Power: single phase/220V/60Hz
  • Heat exchanger: plate type (specially processed paper)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter

  • Optional: high-performance outdoor air cleaning filter (medium)/HEPA filter
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater
  • Motor: BLDC
  • Casing: CR or GI
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
