HOMEERVSlim Type

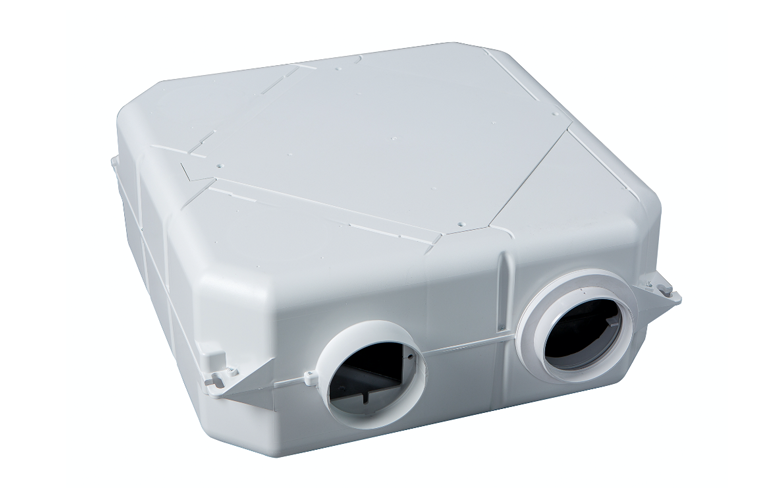

Slim Type

Slim Type (LP type)

Residential Use

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

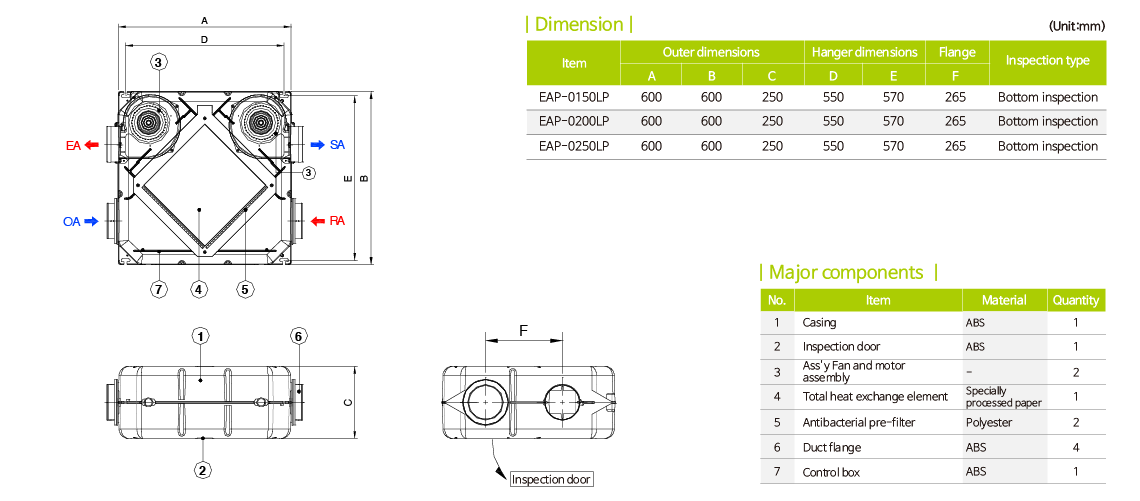

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter Temperature exchange efficiency(%) Total heat exchange efficiency(%) Energy coefficient
high middle low high middle low mmAq dB Ø Cooling Heating Cooling Heating Cooling Heating
AP-0150LP 165 150 75 62 56 28 10 40 or less 125 67 84 56 74 11.29 18.49
AP-0200LP 220 200 100 80 73 37 10 40 or less 125 63 81 51 71 10.09 17.71
AP-0250LP 275 250 125 113 103 52 10 40 or less 125 60 76 47 73 8.36 16.7
Notes
  • Power: single phase/220V/60Hz
  • Heat exchanger: plate type (specially processed paper)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter

  • Optional: high-performance outdoor air cleaning filter (medium)/HEPA filter
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater
  • Motor: BLDC
  • Casing : ABS
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
