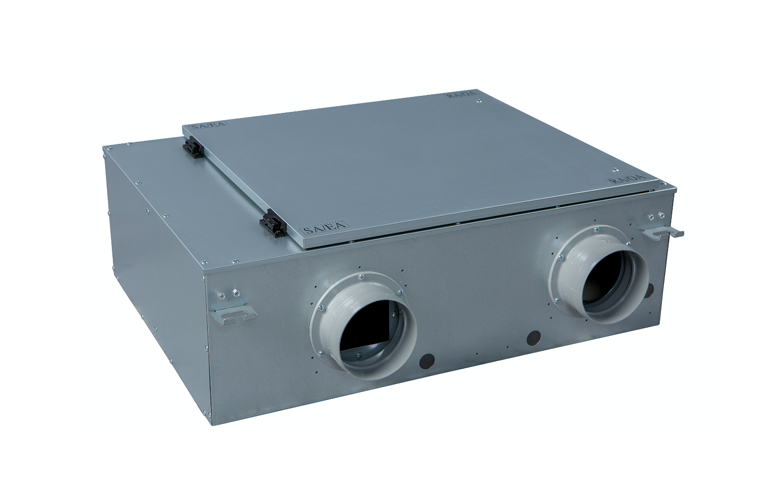

Slim Type

Slim Type (LO type)

Residential Use

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

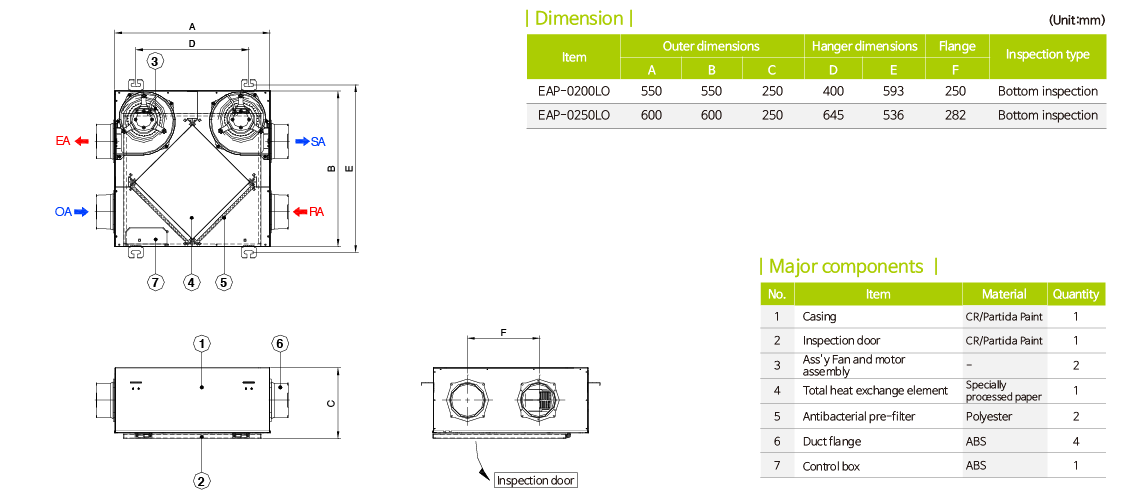

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter Temperature exchange efficiency(%) Total heat exchange efficiency(%) Energy coefficient
high middle low high middle low mmAq dB Ø Cooling Heating Cooling Heating Cooling Heating
AP-0200LO 220 200 100 70 64 32 10 40 or less 125 70 74 52 71 12.08 21.29
AP-0250LO 275 250 125 107 97 49 10 40 or less 125/150 67 78 50 72 9.63 17.51
Notes
  • Power: single phase/220V/60Hz
  • Heat exchanger: plate type (specially processed paper)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter

  • Optional: high-performance outdoor air cleaning filter (medium)/HEPA filter
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater
  • Motor: BLDC
  • Casing : CR/powder coating
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
