HOMEERVSlim Type

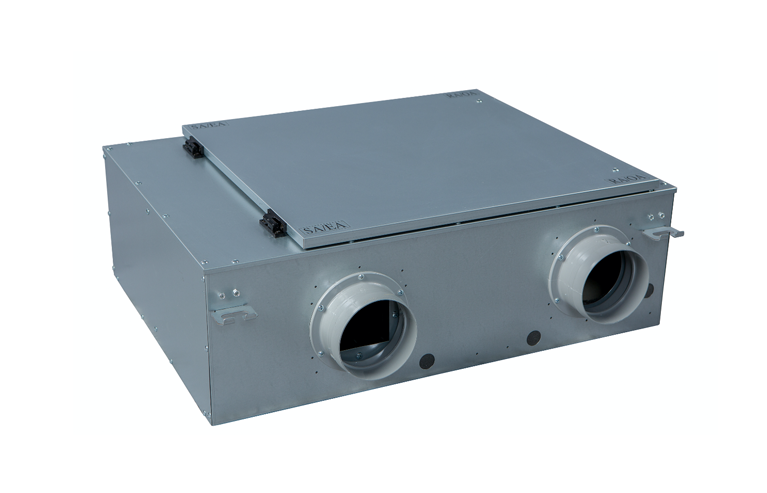

Slim Type

Slim Type (CS type)

Residential Use

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

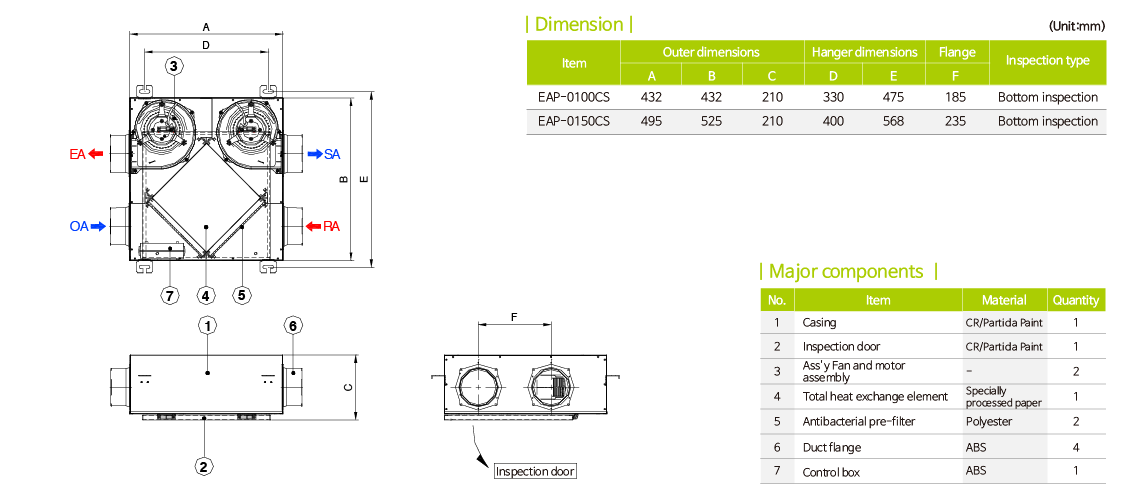

Drawings

Standard Specifications

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter Temperature exchange efficiency(%) Total heat exchange efficiency(%) Energy coefficient
high middle low high middle low mmAq dB Ø Cooling Heating Cooling Heating Cooling Heating
AP-0100CS 110 100 50 39 35 18 10 40 or less 100/125 70 73 54 73 10.23 18.68
AP-0150CS 165 150 75 55 50 25 10 40 or less 125 77 78 52 72 10.66 20.34
Notes
  • Power: single phase/220V/60Hz
  • Heat exchanger: plate type (specially processed paper)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function
  • Filter: antibacterial pre-filter

  • Optional: high-performance outdoor air cleaning filter (medium)/HEPA filter
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater
  • Motor: BLDC
  • Casing : CR/powder coating
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
