HOMEERVIndoor Ductless Type

Indoor Ductless Type

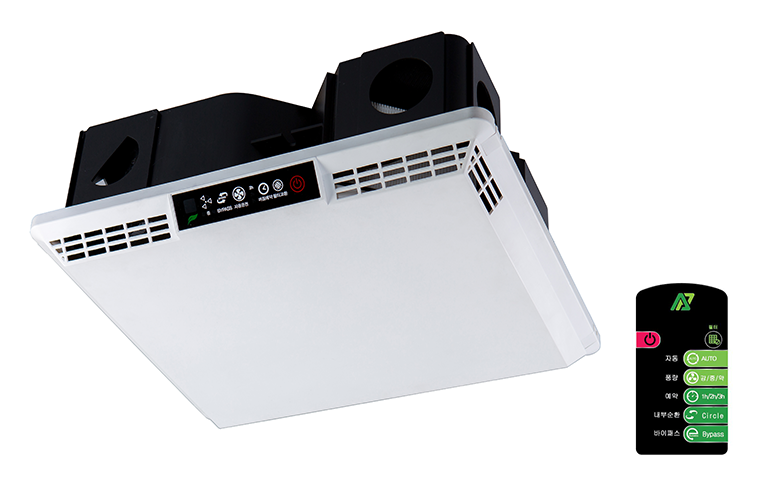

Ductless Ceiling Type

Applied to studio apartments, multipurpose buildings, etc. where the ceiling height is low or it is hard to do duct work

  • High space efficiency and reduced initial installation cost
  • Low power consumption for energy saving
  • Installed in different rooms for individual air volume control and individual operation
  • Removal of ultra-fine dust with 40T HEPA filter and creation of a pleasant indoor environment
  • Bypass function: natural ventilation during the in-between seasons (energy conservation)
  • Internal circulation mode (air cleaning system)

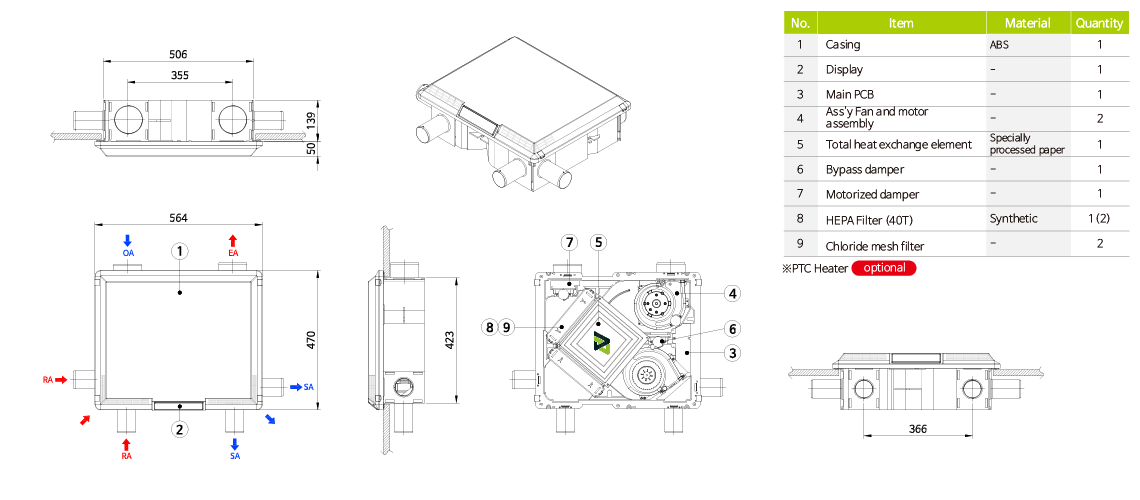

Drawings

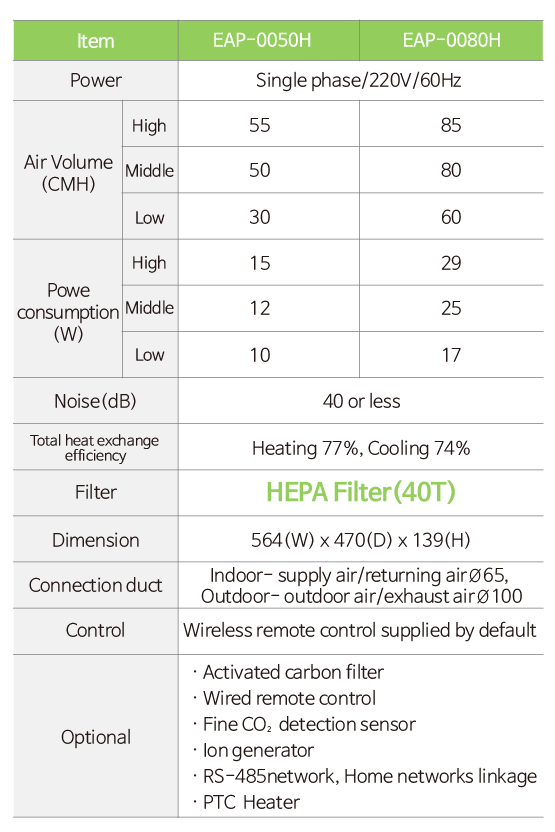

Standard Specifications
Energy recovery ventilator operation mode

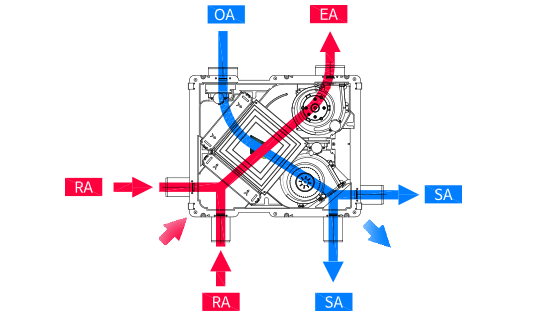

- General energy recovery ventilator (3-sided air supply and 3-sided air exhaust)

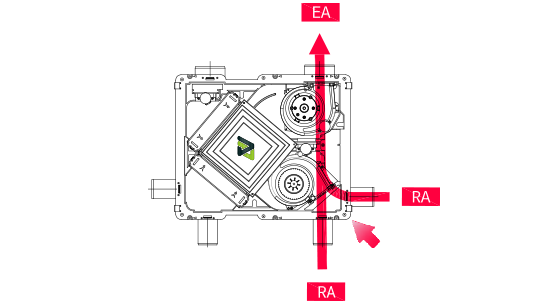

- Bypass

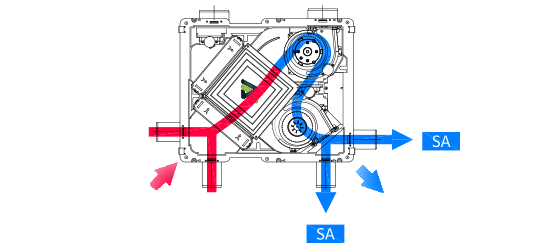

- Internal circulation (air cleaning system)

*To use the internal circulation mode, you should mount the HEPA filter (40T) on the RA side slot.

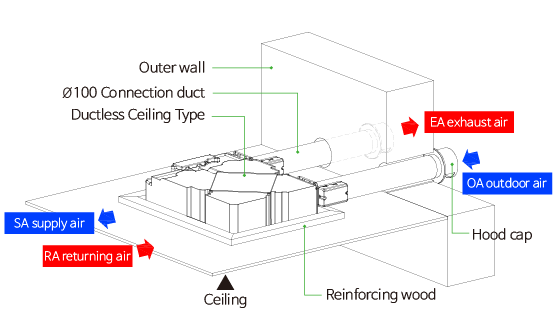

Installation drawing

Installation precautions for the ductless ceiling type

1. Set a 10mm or less reinforcing wood and install a heat-insulated duct.

2. Fix hangers or set the reinforcing wood.

3. Boring dimensions: 521 x 433mm

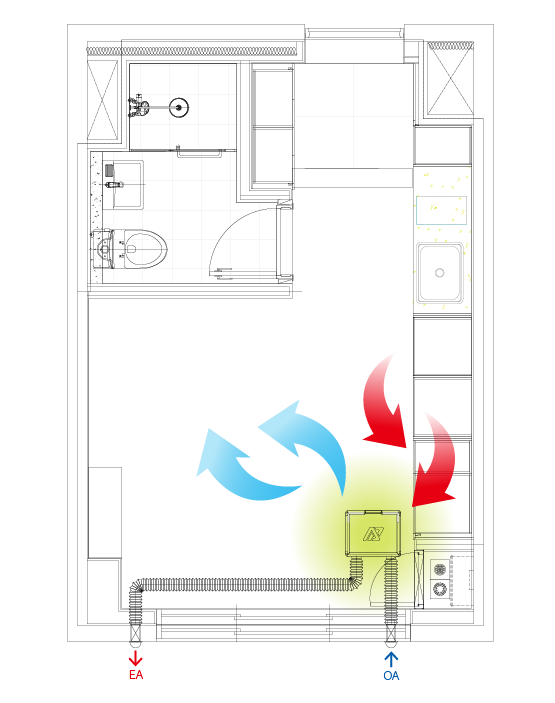

Product layout example (studio apartment)

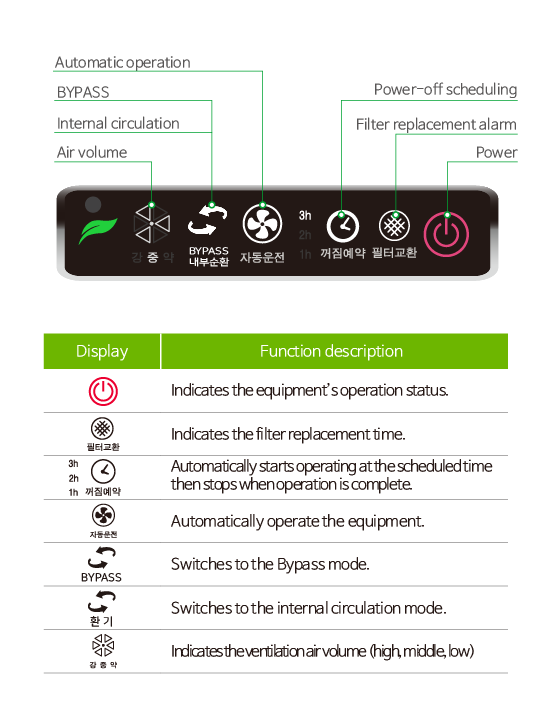

Product display function

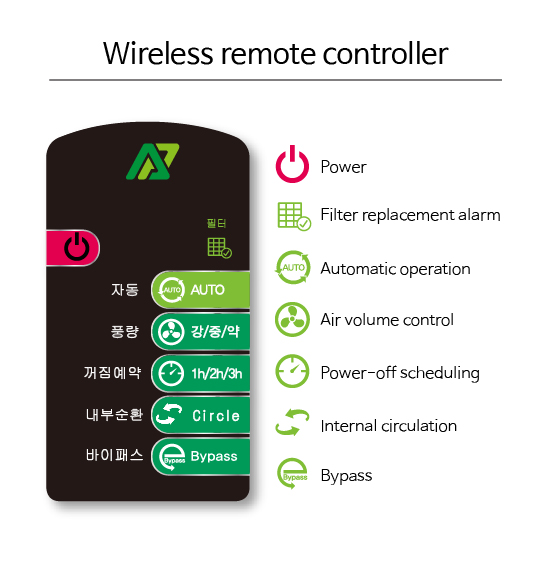

Wireless remote controller
