HOMEERVBypass Type

Bypass Type

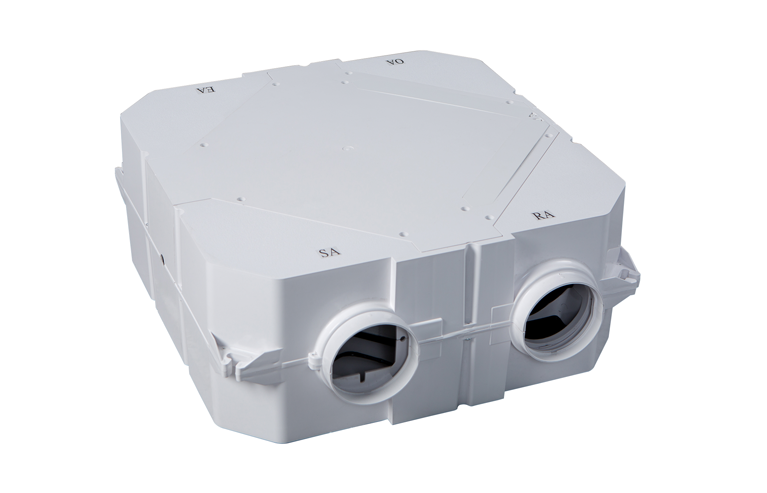

Bypass type (NHB type)

Residential Use

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.

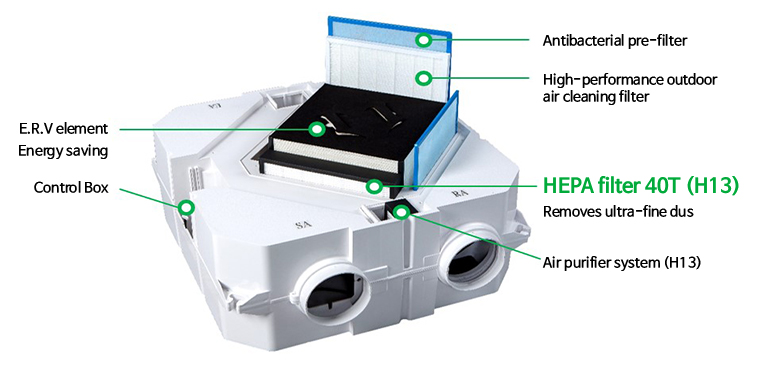

  • Removes ultra-fine dust with the 40T HEPA filter
  • Natural ventilation during the in-between seasons (energy conservation)
  • Air cleaning function (HEPA filter 40T)

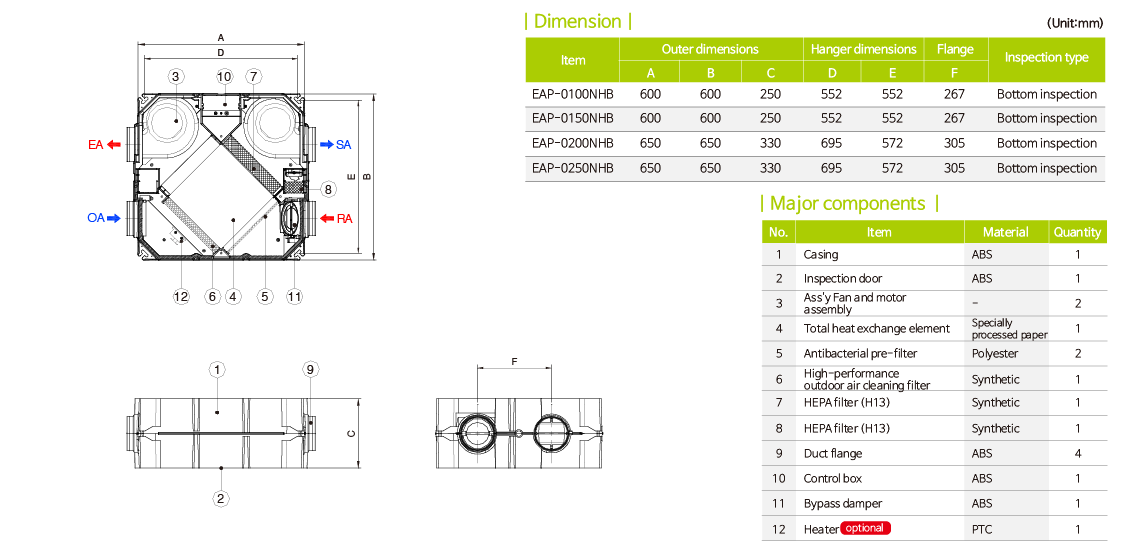

Drawings

Standard Specifications

*When the bypass mode is applied, 90% or more of the standard air volume is discharged.

Item Air volume(CMH) Power consumption(W) External static pressure Noise Duct diameter Temperature exchange efficiency(%) Total heat exchange efficiency(%) Energy coefficient
high middle low high middle low mmAq dB Ø Cooling Heating Cooling Heating Cooling Heating
EAP-0100NHB 110 100 50 46 42 21 10 40 or less 125 72.2 77.1 64.1 72.4 11.7 15.77
EAP-0150NHB 165 150 75 71 65 32 10 40 or less 125 68.8 79.3 62.3 72.3 11.05 15.55
EAP-0200NHB 220 200 100 80 73 36 10 40 or less 150 69.0 78.3 62.9 74.2 8.0 15.0
EAP-0250NHB 275 250 125 113 103 51 10 40 or less 150 73.4 78.1 64.7 73.2 8.0 15.0
Notes
  • Power: single phase/220V/60Hz
  • Heat exchanger: plate type (specially processed paper)
  • Air volume control: high, middle, low (3 levels)/sleep function/power saving function

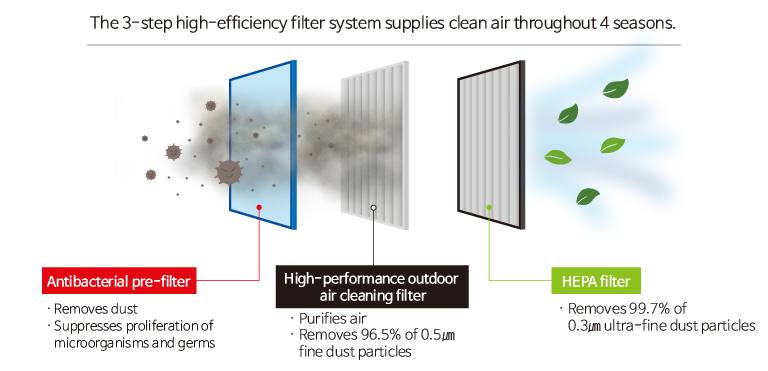

  • Filter: antibacterial pre-filter/high-performance outdoor air cleaning filter (medium)/HEPA filter

  • Optional: Air cleaning system (HEPA filter 40T)
    Motorized damper
    Backdraft damper
    Wired remote controller
    Fine CO₂ detection sensor
    PTC heater
  • Motor: BLDC
  • Casing: ABS
  • Warranty period: 2 years

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
