Bypass Type

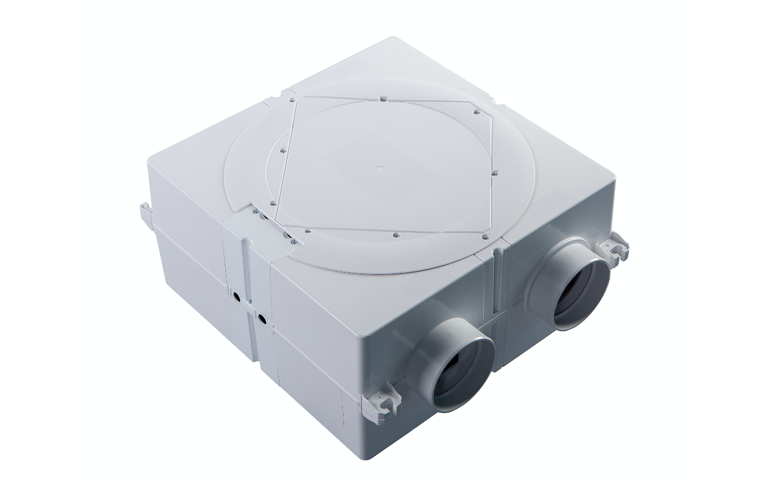

Bypass Type (CTB type)

Residential Use

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional
  • Natural ventilation during the in-between seasons (energy conservation)

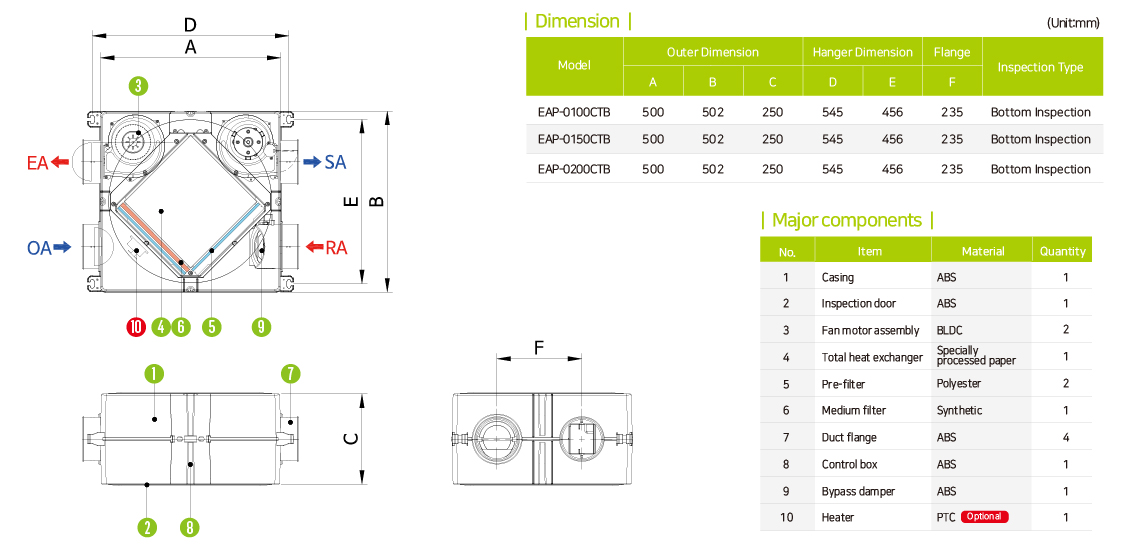

Drawings

Standard Specifications

*When the bypass mode is applied, 90% or more of the standard air volume is discharged.

Model Air Volume Power Consumption Duct Diameter External Static Pressure Noise Total Heat Exchange Efficiency(%) Energy Coefficient
High Middle Low W Ø Pa dB Cooling Heating Cooling Heating
EAP-0100CTB 110 100 50 40.0 125 70 or more 40 or less 45 or more 70 or more 8.00 or more 15.00 or more
EAP-0150CTB 165 150 75 64.0 125
EAP-0200CTB 220 200 100 87.0 125
Notes
  • Power: Single phase/220V/60Hz
  • Heat Exchanger: Plate type (specially processed paper)
  • Air volume control: High, Middle, Low (3 levels)/Sleep function/Energy-saving function
  • Filter: Pre-Filter / Medium filter 10mm
  • Motor: BLDC
  • Casing: ABS
  • Warranty period: 2 years
  • Optional: HEPA Filter 20mm / Activated carbon filter / Motorised damper / Backdraft damper / PTC heater
    Wired remote controller / C02 fine dust detection sensors / Home network integration

※The product specifications and performance are subject to change according to the technical development and product improvement.

※The above images are subject to change depending on the site conditions and application.
