Floor Type

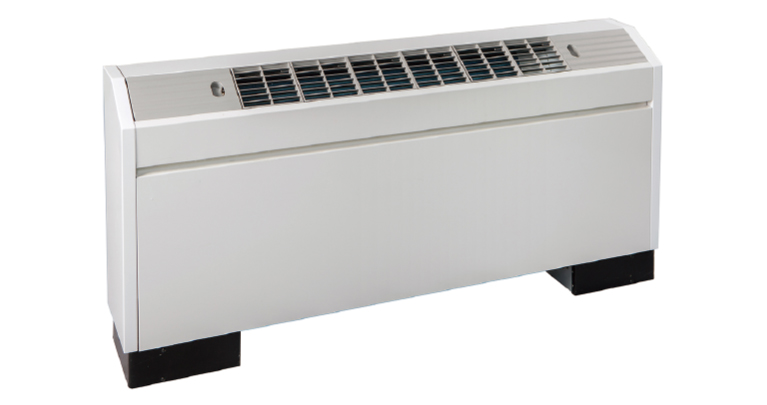

Floor-exposed Slant Top Discharge Type(AFC-TE TYPE)

  • Suitable for multi-purpose facilities such as school building, etc. where the cooling and heating efficiency is low
  • Effective cooling and heating when installed in a space with a high ceiling or lots of windows

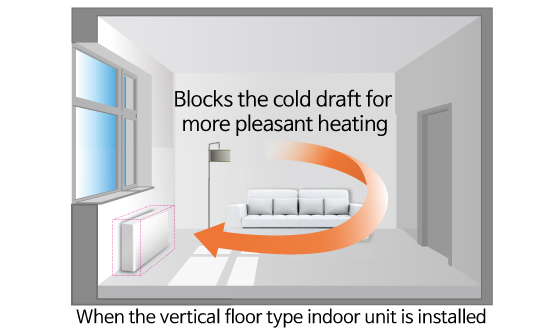

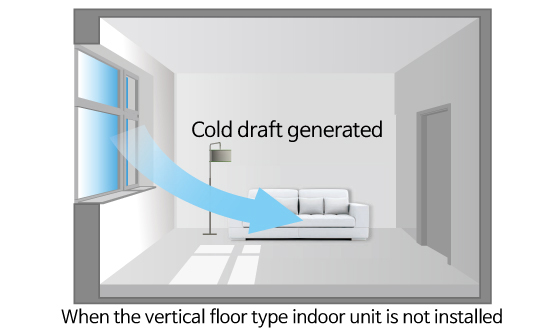

Cold draft blocking
  • Blocks the cold air from the window sides for more pleasant indoor heating.
Functions
  • Air volume control in high, middle and low levels
  • Micom auto-control system, automatic operation according to the temperature change and centralized control optional
Features
  • Excellent indoor space efficiency
    The slim and compact design enables easy installation in the indoor space.
  • Easy installation and maintenance
    With the vertical floor type, there is no device with complex functions, making maintenance easy.
  • AC motor
    The condenser-operated single-phase induction motor has low noise and long life.
  • The double suction multi-blade (Sirocco) fan is used for silent operation..
  • Uses a discharge grille that evenly distributes indoor air.
  • Air purification functionoptional
    You can install an air purifier of the photocatalyst, UV lamp, or ionizer type for sterilization, antibacterial actions, deodorization, or removal of the sick house syndrome to create a pleasant indoor environment.

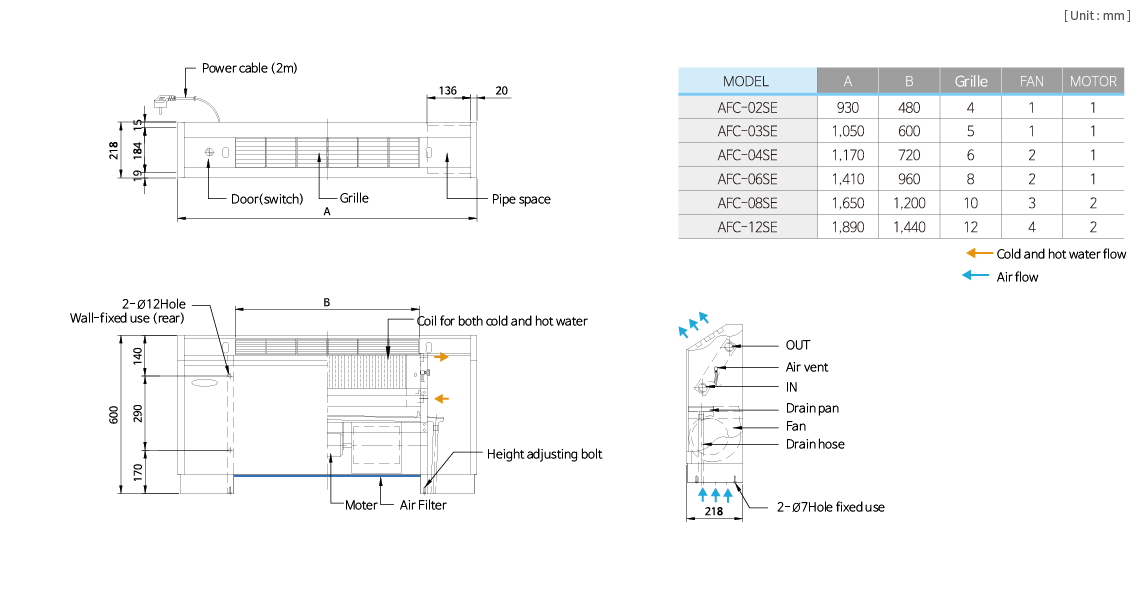

Drawings

Standard Specifications

Item Unit AFC-02SE AFC-03SE AFC-04SE AFC-06SE AFC-08SE AFC-12SE
Capacity Capacity condition A B A B A B A B A B A B
Cooling capacity W 3,150 2,160 4,270 2,820 5,730 4,040 7,980 5,520 11,080 7,900 14,700 10,290
Kcal/h 2,710 1,860 3,680 2,430 4,930 3,480 6,870 4,750 9,530 6,800 12,650 8,850
Heating capacity W 5,790 3,480 8,010 4,760 10,800 6,730 14,650 9,100 21,310 12,950 25,030 14,330
Kcal/h 4,980 3,000 6,890 4,100 9,290 5,790 12,600 7,830 18,330 11,140 21,530 12,330
Flow rate ℓ/min 9.0 6.3 12.3 8.1 16.4 11.6 22.9 15.8 31.8 22.7 42.2 29.5
Loss of head mAq 0.5 0.3 1.4 0.8 3.0 1.7 9.1 5.1 5.2 2.9 6.1 3.4
Blower Type Sirocco Fan
Dimension mm Ø145 x 160 L Ø145 x 200 L Ø145 x 160 L Ø145 x 200 L
Air volume ㎥/min 5.7 8.5 11.3 17 22.6 34
Operate 　 Direct motor operate
Quantity EA 1 1 2 2 3 4
Motor Type Semi-sealed type (6 poles and class B insulation)
Power consumption W 30 40 50 70 40+70 70+70
Quantity EA 1 1 1 1 2 2
Heat exchanger Type Multi-Pass  Cross  Finned  Tube(Super Slit  Fin)
Fin Pitch mm 2.1
Piping Inlet A  20A (PF 3/4")
Outlet A  20A (PF 3/4")
Drain mm Ø16(outer diameter)
Exterior materials PCM color steel plate
Heat insulation and sound-absorbing material P.E & P.U Foam
Air volume control Control switch in high, middle and low levels
Power Single phase/220V/60Hz
Air filter Vinyl chloride (water cleaning type), 08/12 Model is dual split*
Equipment weight Kg 21 24 26.5 31.5 43.5 47
1. Capacity condition A

The cooling capacity is for indoor air DB 27℃ and WB 21℃ and inlet water temperature 5℃, and the heating capacity is for indoor air 18℃ and inlet water temperature 80℃.

2. Capacity condition B

The cooling capacity is for indoor air DB 27℃ and WB 19.5℃ and inlet water temperature 7℃, and the heating capacity is for indoor air 21℃ and inlet water temperature 60℃.
