Floor-concealed Type(Type(AFC-GC TYPE)

  • Applicable to high-rise buildings with curtain walls Structure (exterior Wall)
  • Interior Finishing

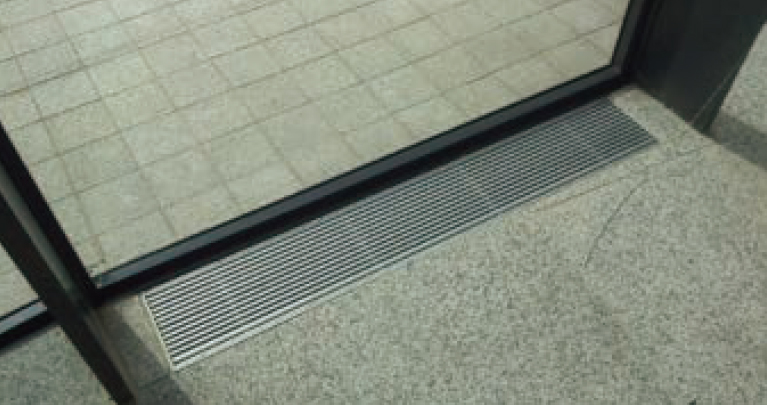

  • Fits flush with the floor surface, occupying minimal installation space and providing a clean aesthetic
  • Installed in the perimeter zone to block incoming heat from the outside
  • Excellent in cooling and heating by using a fan-based method
  • Using durable aluminium as finishing material
Cold draft blocking
  • Blocks the cold air from the window sides for more pleasant indoor heating.
Functions
  • Air volume control in high, middle and low levels
  • Micom auto-control system, automatic operation according to the temperature change and centralized control optional
Features
  • Excellent indoor space efficiency
    The slim and compact design enables easy installation in the indoor space.
  • Easy installation and maintenance
    With the vertical floor type, there is no device with complex functions, making maintenance easy.
  • AC motor
    The condenser-operated single-phase induction motor has low noise and long life.
  • The double suction multi-blade (Sirocco) fan is used for silent operation..
  • Uses a discharge grille that evenly distributes indoor air.
  • Air purification functionoptional
    You can install an air purifier of the photocatalyst, UV lamp, or ionizer type for sterilization, antibacterial actions, deodorization, or removal of the sick house syndrome to create a pleasant indoor environment.

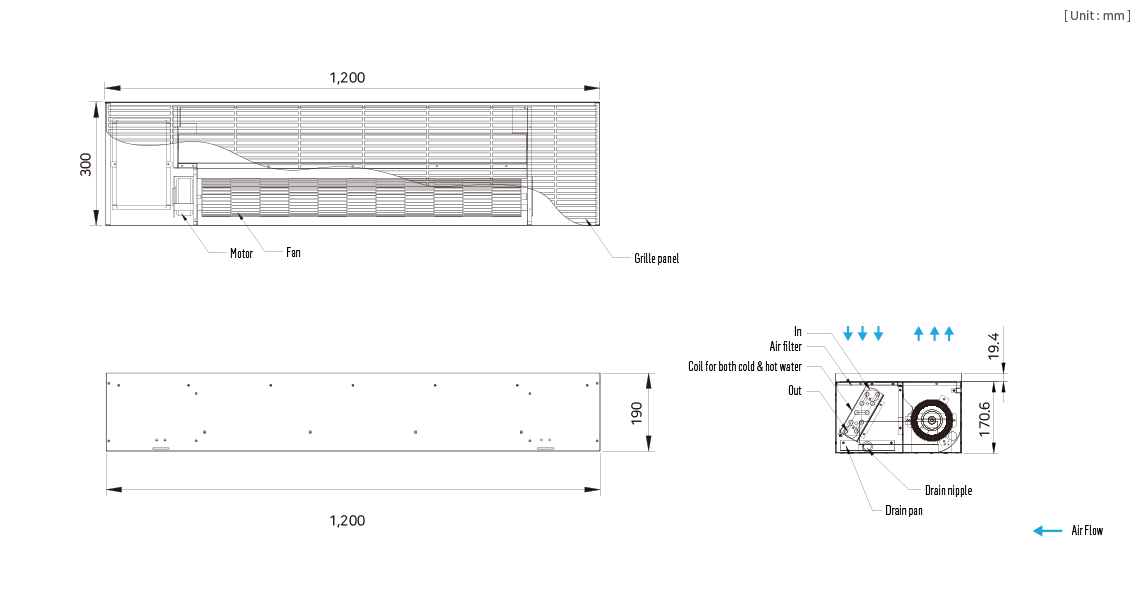

Drawings

Standard Specifications

Item Unit AFC-01GC AFC-03GC
Capacity Capacity Condition A B A B
Cooling Capacity W 3,660 2,500 4,650 3,610
Kcal/h 3,150 2,150 4,000 3,100
Heating Capacity W 5,815 3,720 8,900 5,230
Kcal/h 5,000 3,200 7,650 4,500
Flow Rate L/min 10.5 7.5 13.3 10.3
Loss of Head mAq 2.41 1.40 3.78 2.13
Blower Type Cross flow fan
Unit mm Ø95 x785 L
Air Volume ㎥/min 8 11
Operate Direct motor operate
Quantity EA 1 2
Motor Type Semi-sealed type (6 poles and class E insulation), BLDC motor
Power Consumption W 70 110
Quantity EA 1
Heat Exchange Type Type Multi-pass cross finned tube(super slit fin)
Fin Pitch Mm 2.1
Piping Inlet A 20A PF 3/4"
Outlet A 20A PF 3/4"
Exterior Materials Galvanized steel
Heat insulation and sound-absorbing material Poly ethylene foam + styrofoam
Air Volume High, mid, low (3-levels)
Power Single phase/220V/60Hz
Air Filter Air Filter Vinyl chloride (water cleaning type)
Outer Dimension mm 1,200(L) x 300(D) x 190(H) 2,000(L) x 300(D) x 190(H)
Equipment Weight Kg 28 38
