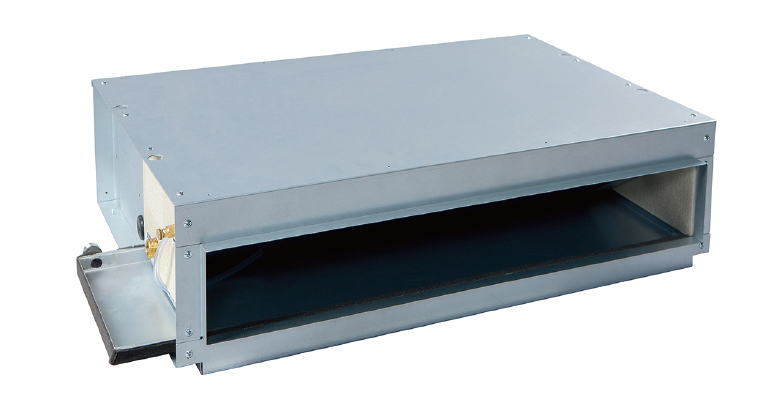

Ceiling-concealed Type(AFC-CC TYPE)

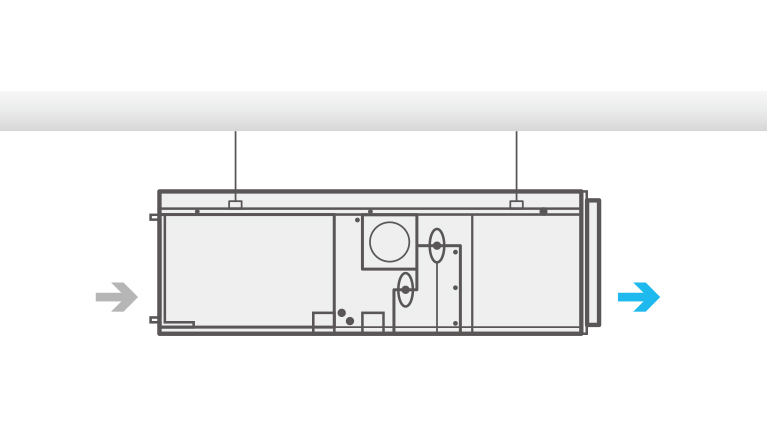

  • Space efficiency through the concealed installation in the ceiling
  • Free placement of the air suction inlet
  • Standard external static pressure not greater than 2mmAq
  • Easy maintenance

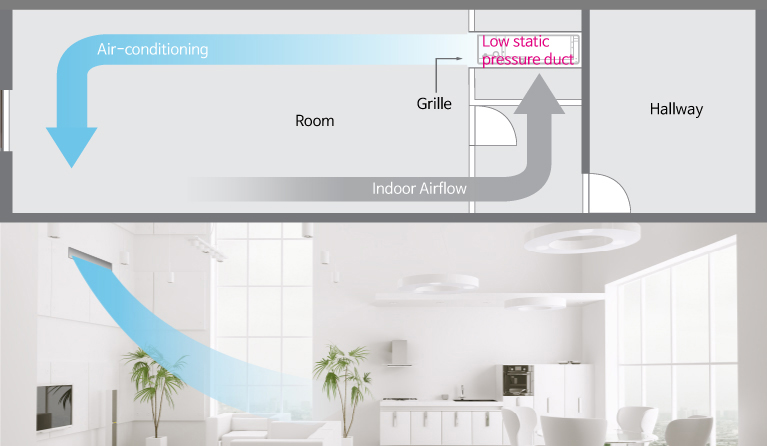

Installation space efficiency
  • No duct space is required, which reduces the internal installation space for excellent space efficiency.
Functions
  • Air volume control in high, middle and low levels
  • Powerless speed control using contact points
  • Automatic operation according to the temperature change and centralized control using the wired remote controlleroptional
Features
  • Excellent indoor space efficiency
    The compactly designed main body is buried in the ceiling. Because it does not occupy the floor area, you can use the indoor space more efficiently.
  • Easy installation and maintenance
    The slim equipment does not occupy a large space. It is fully buried, supplying air through the duct, which makes luxurious and clean interior design possible.
    Thanks to the natural water drainage, there is no device with complex functions, making maintenance easy.
  • AC motor
    The condenser-operated single-phase induction motor has low noise and long life.
  • The double suction multi-blade (Sirocco) fan is used for silent operation.
  • Air purification functionoptional
    You can install an air purifier of the photocatalyst, UV lamp, or ionizer type for sterilization, antibacterial actions, deodorization, or removal of the sick house syndrome to create a pleasant indoor environment.

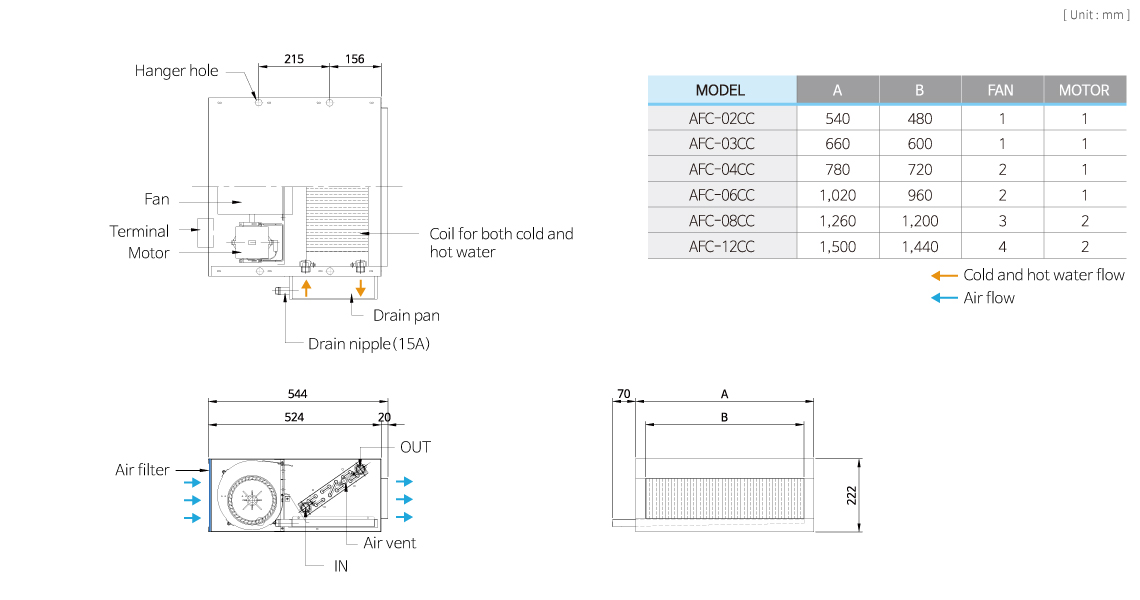

Drawings

Standard Specifications

Item Unit AFC-02CC AFC-03CC AFC-04CC AFC-06CC AFC-08CC AFC-12CC
Capacity Capacity condition A B A B A B A B A B A B
Cooling capacity W 3,150 2,160 4,280 2,830 5,730 4,050 7,990 5,520 11,080 7,907 14,709 10,290
Kcal/h 2,710 1,860 3,680 2,430 4,930 3,480 6,870 4,750 9,530 6,800 12,650 8,850
Heating capacity W 5,790 3,490 8,010 4,770 10,800 6,730 14,650 9,100 21,230 12,960 25,035 14,340
Kcal/h 4,980 3,000 6,890 4,100 9,290 5,790 12,600 7,830 18,330 11,140 21,530 12,330
Flow rate ℓ/min 9.0 6.2 12.3 8.1 16.4 11.6 22.9 15.8 31.8 22.7 42.2 29.5
Loss of head mAq 0.5 0.3 1.4 0.8 3.0 1.7 9.1 5.1 5.2 2.9 6.1 3.4
Blower Type Sirocco Fan
Dimension mm Ø145 x 160 L Ø145 x 200 L Ø145 x 160 L Ø145 x 200 L
Air volume ㎥/min 5.7 8.5 11.3 17 22.6 34
Operate 　 Direct motor operate
Quantity EA 1 1 2 2 3 4
Motor Type Semi-sealed type (6 poles and class B insulation)
Power consumption W 45 55 70 80 55+85 85+85
Quantity EA 1 1 1 1 2 2
Heat exchanger Type Multi-Pass  Cross  Finned  Tube(Super Slit  Fin)
Fin Pitch mm 2.1
Piping Inlet A  20A (PF 3/4")
Outlet A  20A (PF 3/4")
Drain mm 15A (PT 1/2")
Exterior materials galvanized steel
Heat insulation and sound-absorbing material P.E & P.U Foam
Air volume control Control switch in high, middle and low levels
Power Single phase/220V/60Hz
Air filter Vinyl chloride (water cleaning type)
Equipment weight Kg 19 22 25 30 41 46
1. Capacity condition A

The cooling capacity is for indoor air DB 27℃ and WB 21℃ and inlet water temperature 5℃, and the heating capacity is for indoor air 18℃ and inlet water temperature 80℃.

2. Capacity condition B

The cooling capacity is for indoor air DB 27℃ and WB 19.5℃ and inlet water temperature 7℃, and the heating capacity is for indoor air 21℃ and inlet water temperature 60℃.
