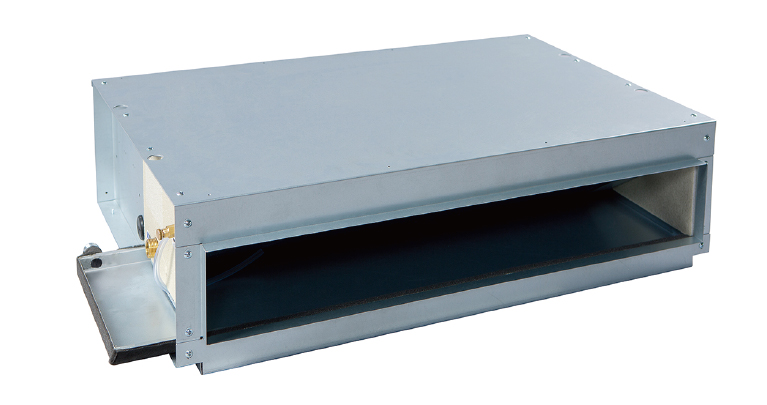

Low Noise Ceiling-concealed Type Dedicated to Hotels(AFC-LN TYPE)

  • Minimizes the operation noise to maintain low noise for the indoor space
  • Compact design and the ceiling burial installation saves the space
  • Individual room control and easy centralized control
  • High-efficiency BLDC motor requires less power consumption than the AC motor
Installation space efficiency
  • No duct space is required, which reduces the internal installation space for excellent space efficiency.
Functions
  • 3-level control using the power switch (provided separately from the main body)
  • Automatic operation according to the temperature change and centralized control using the wired remote controller optional
  • Linked operation with the smart kit optional
Features
  • Excellent indoor space efficiency

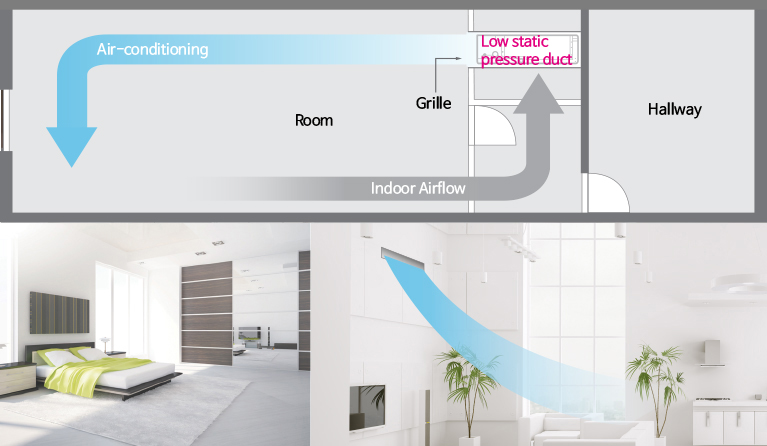

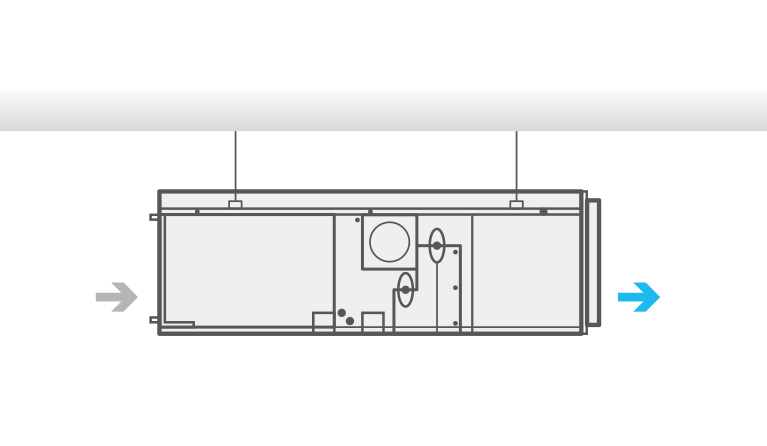

    The compactly designed main body is buried in the ceiling. Because it does not occupy the floor area, you can use the indoor space more efficiently.
  • Easy installation and maintenance
    The compact equipment does not occupy a large space. It is fully buried, supplying air through the duct, which makes luxurious and clean interior design possible.
    Thanks to the natural water drainage, there is no device with complex functions, making maintenance easy.
  • BLDC motor
    The brush-less DC motor minimizes operational noise and power consumption.
  • The double suction multi-blade (Sirocco) fan is used for silent operation.
  • Air purification function optional
    You can install an air purifier of the photocatalyst, UV lamp, or ionizer type for sterilization, antibacterial actions, deodorization, or removal of the sick house syndrome to create a pleasant indoor environment.

Drawings

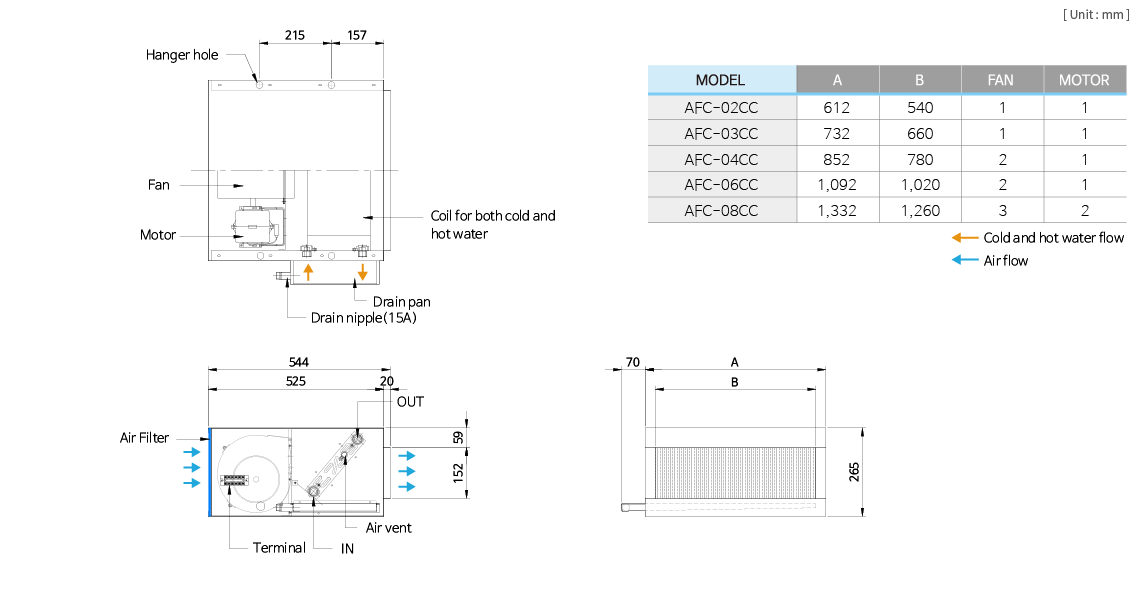

Standard Specifications

Item Unit AFC-02LN AFC-03LN AFC-04LN AFC-06LN AFC-08LN
Capacity Capacity condition A B A B A B A B A B
Cooling capacity W 3,150 2,160 4,280 2,830 5,730 4,050 7,990 5,520 11,080 7,907
Kcal/h 2,710 1,860 3,680 2,430 4,930 3,480 6,870 4,750 9,530 6,800
Heating capacity W 5,790 3,490 8,010 4,770 10,800 6,730 14,650 9,100 21,230 12,960
Kcal/h 4,980 3,000 6,890 4,100 9,290 5,790 12,600 7,830 18,330 11,140
Flow rate ℓ/min 9.0 6.3 12.3 8.1 16.4 11.6 22.9 15.8 31.8 22.7
Loss of head mAq 0.5 0.3 1.4 0.8 3.0 1.7 9.1 5.1 5.2 2.9
Blower Type Sirocco Fan
Dimension mm Ø160 x 160 L
Air volume ㎥/min 5.7 8.5 11.3 17 22.6
Operate 　 Direct motor operate
Quantity EA 1 1 2 2 3
Motor Type Semi-sealed type (6 poles and class B insulation)
Power consumption W 17 20 25 50 70
Quantity EA 1 1 1 1 2
Heat exchanger Type Multi-Pass  Cross  Finned  Tube(Slit  Fin)
Fin Pitch mm 2.1
Piping Inlet A 20A (PF 3/4")
Outlet A 20A (PF 3/4")
Drain 15A (PT 1/2")
Exterior materials galvanized steel
Heat insulation and sound-absorbing material P.E & P.U Foam
Air volume control Control switch in high, middle and low levels
Power Single phase/220V/60Hz
Air filter Vinyl chloride (water cleaning type)
Equipment weight Kg 19 22 25 30 41
1. Capacity condition A

The cooling capacity is for indoor air DB 27℃ and WB 21℃ and inlet water temperature 5℃, and the heating capacity is for indoor air 18℃ and inlet water temperature 80℃.

2. Capacity condition B

The cooling capacity is for indoor air DB 27℃ and WB 19.5℃ and inlet water temperature 7℃, and the heating capacity is for indoor air 21℃ and inlet water temperature 60℃.
