2-way Cassette Type(AFC-C2 TYPE)

Features

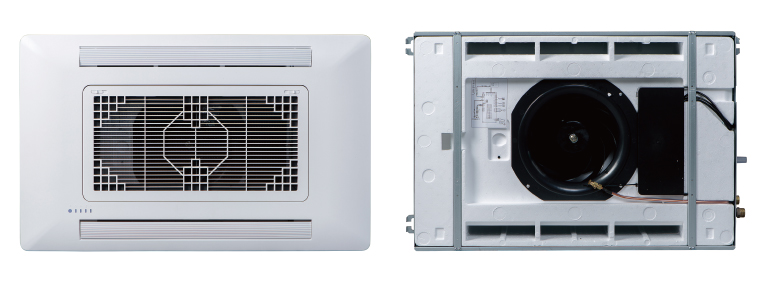

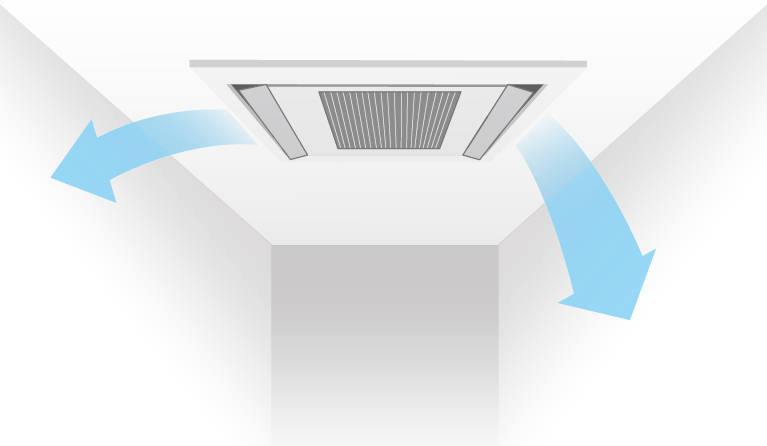

  • Evenly discharge in two directions- Specialized for rooms, hallways, etc.
  • High-quality interior design in the traditional patterns
  • Interlinked operation of up to 32 units using one wired remote controller
  • Automatic ID assignment function, capable of linked operation through various central controls
  • Power interruption compensation function
  • High head/low noise drain pump
  • Automatic filter replacement alarm function optional
Air direction control using blade angle and individual control

You can control the blade angle by levels according to the installation environment, use conditions and user location and individually control each blade.

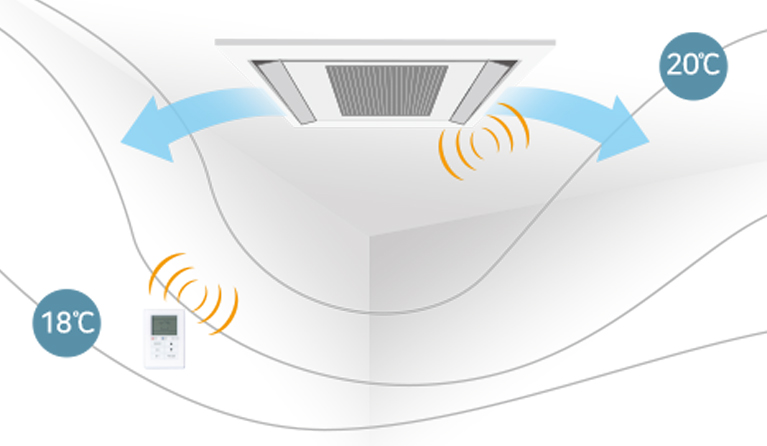

Room temperature control function

Minimizes temperature differences in rooms to maintain the optimal room temperature.

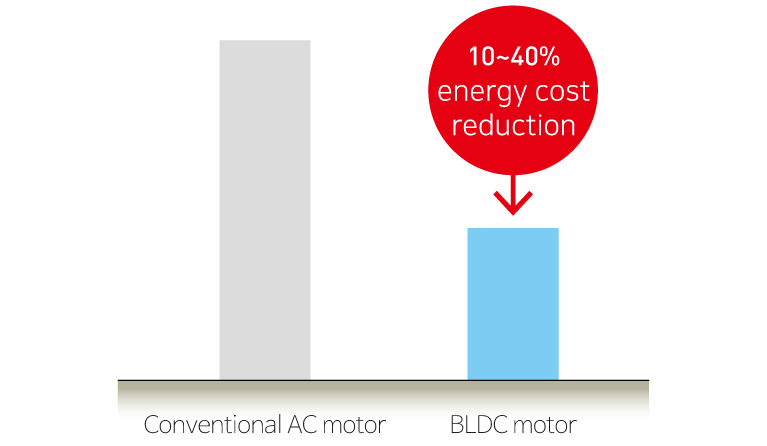

Low-noise and energy-conserving operation

The low-power high-efficiency BLDC motor is applied for energy conservation.

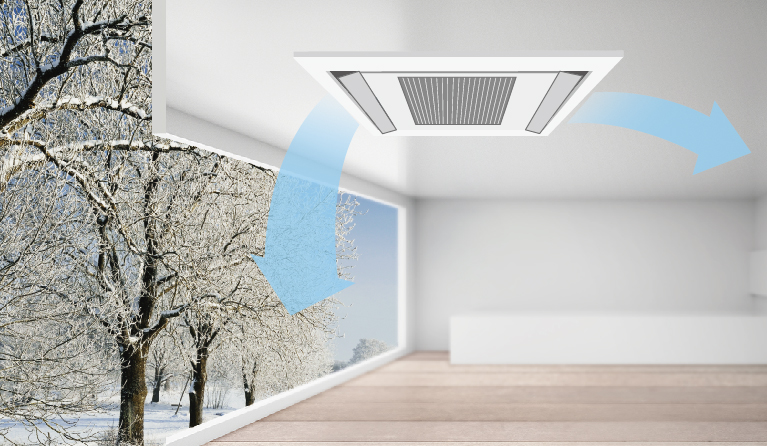

Freezing and rupture prevention function

The piping circulation mode operates in linkage when the room temperature is not greater than 5℃ (hot water supply, circulation, automatic valve signal)/p>

Hallways, offices, small and mid-sized commercial facilities

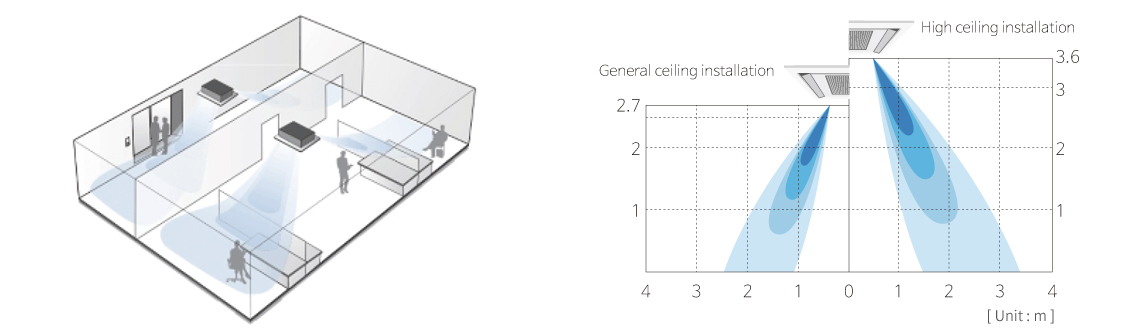

Suitable for long spaces with a high ceiling

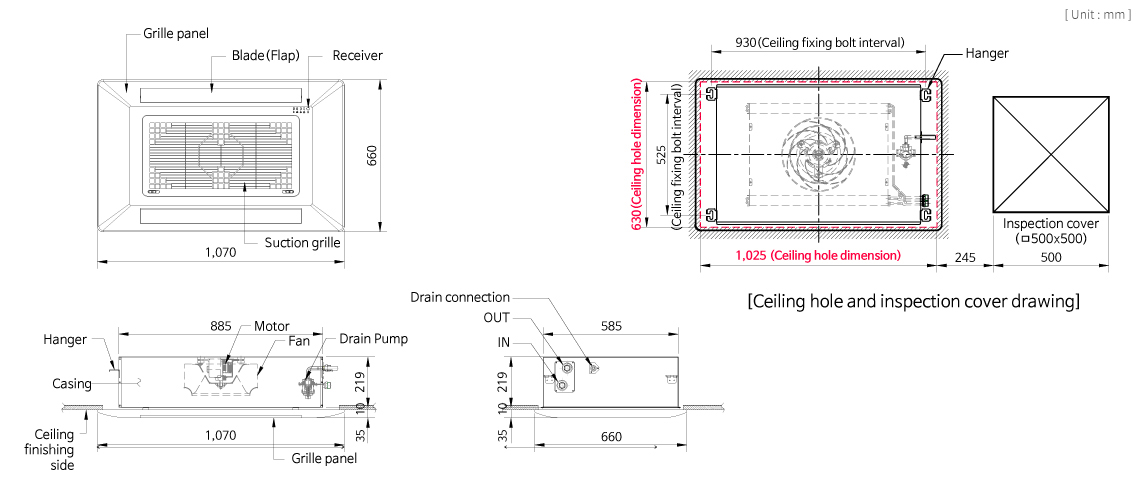

Drawings

Standard Specifications

Item Unit AFC-03C2 AFC-04C2 AFC-05C2
Capacity Capacity condition A B A B A B
Cooling capacity W 6,035 3,663 6,810 5,060 7,730 6,110
Kcal/h 5,190 3,150 5,852 4,350 6,650 5,250
Heating capacity W 10,767 5,860 12,095 7,440 13,840 8,660
Kcal/h 9,260 5,040 10,400 6,400 11,900 7,450
Flow rate ℓ/min 17.3 10.5 19.8 14.5 22.1 17.5
Loss of head mAq 4.7 2.1 6.2 2.7 7.6 4.2
Blower Type Single suction turbo type
Dimension mm Ø320
Air volume ㎥/min 11 14 17
Operate 　 Direct motor operate
Quantity EA 1
Motor Type Semi-sealed type (6 poles and class B insulation), BLDC Motor
Power consumption W 35 45 70
Quantity EA 1
Heat exchanger Type Multi-Pass  Cross  Finned  Tube(Super Slit  Fin)
Fin Pitch mm 2.1
Piping Inlet A   20A (PF 3/4")
Outlet A   20A (PF 3/4")
Drain mm Ø16 (outer diameter)/drain up pump embedded type (8W)/head 600mm (based on the outlet)
Exterior materials Main body: galvanized steel/Grille panel: ABS
Heat insulation and sound-absorbing material Poly Ethylene Foam + Styrofoam
Air volume control Turbo, high, middle, low, automatic remote controller (wired remote control optional)
Power Single phase/220V/60Hz
Air filter Vinyl chloride (water cleaning type)
Main body dimensions mm 885(W) x 605(D) x 220(H)
Grille panel dimensions mm 1,070(W) x 660(D) x 35(H)
Equipment weight Kg 26
1. Capacity condition A

The cooling capacity is for indoor air DB 27℃ and WB 21℃ and inlet water temperature 5℃, and the heating capacity is for indoor air 18℃ and inlet water temperature 80℃.

2. Capacity condition B

The cooling capacity is for indoor air DB 27℃ and WB 19.5℃ and inlet water temperature 7℃, and the heating capacity is for indoor air 21℃ and inlet water temperature 60℃.
